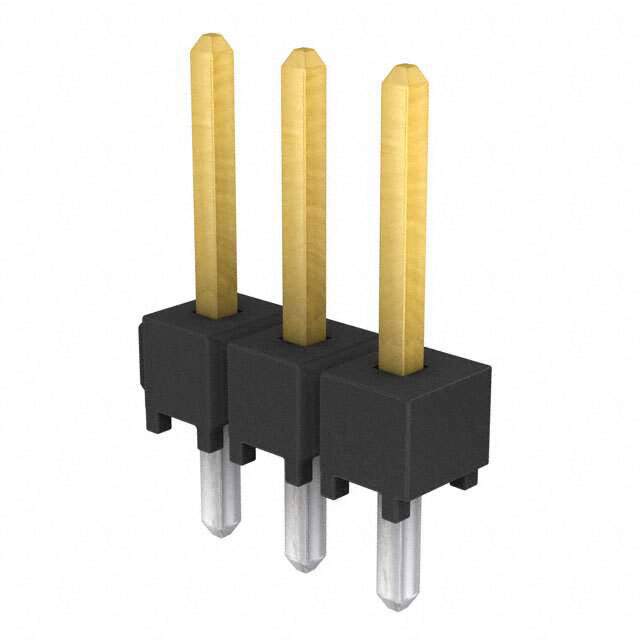

Same model may have multiple batches, images only for reference.

TSW-103-07-F-S

Name: TSW-103-07-F-S
Brand: Samtec Inc.
SKU: 937827
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSW-103-07-F-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 2.54MM
Datasheet	TSW-103-07-F-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	8 Weeks
Features	Connector Header Through Hole 3 position 0.100" (2.54mm)
Manufacturer	Samtec Inc.
Series	TSW
Package	Bag
Operating Temperature Range	-55°C ~ 125°C
Mounting	Through Hole
Family Name	TSW-103
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM8995, TSW-103-07-F-S-ND
Quantity per package	1
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	937827-TSW-103-07-F-S
Ultra Librarian 3D Model	Ultra Librarian TSW-103-07-F-S CAD Model

Alternative Products

Description

The Samtec TSW series connector header is a high-quality through-hole connector header that is ideal for use in a wide range of applications.

Pitch: 0.1 inches (2.54mm)
Number of Positions: 3
Temperature Rating: -55°C to 125°C
Package: Bag
Mounting: Through-Hole
