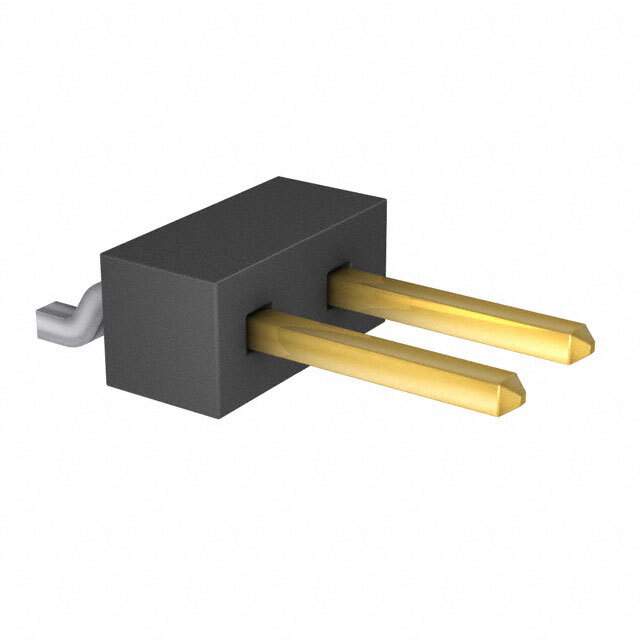

TSM-102-01-L-SH Real Image
Same model may have multiple batches, images only for reference.

TSM-102-01-L-SH

Part No TSM-102-01-L-SH
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description SMT .025" SQ POST HEADER
Datasheet
TSM-102-01-L-SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series TSM
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.120" (3.05mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 1274765-TSM-102-01-L-SH
Manufacturer Homepage www.samtec.com/
Popularity Medium
Supply and Demand Status Limited
Family Name TSM
Introduction Date September 18, 2001
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian TSM-102-01-L-SH CAD Model

Description

The Samtec Inc. TSM series header connector is designed for board to board or cable connections.

  • Pitch: 0.100" (2.54mm)
  • Positions: 2 positions loaded in a single row
  • Contact Shape: Square
  • Contact Material: Phosphor bronze
  • Contact Finish (Mating): Gold with a thickness of 10μin (0.25μm)
  • Contact Finish (Post): Tin
  • Operating Temperature Range: -55°C ~ 125°C
  • Material Flammability Rating: UL94 V-0
  • Mounting: Surface, Right Angle
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Shrouded: Unshrouded
  • Insulation Height: 0.120" (3.05mm)
  • Supply and Demand: Limited
  • Estimated EOL Date: 2024
