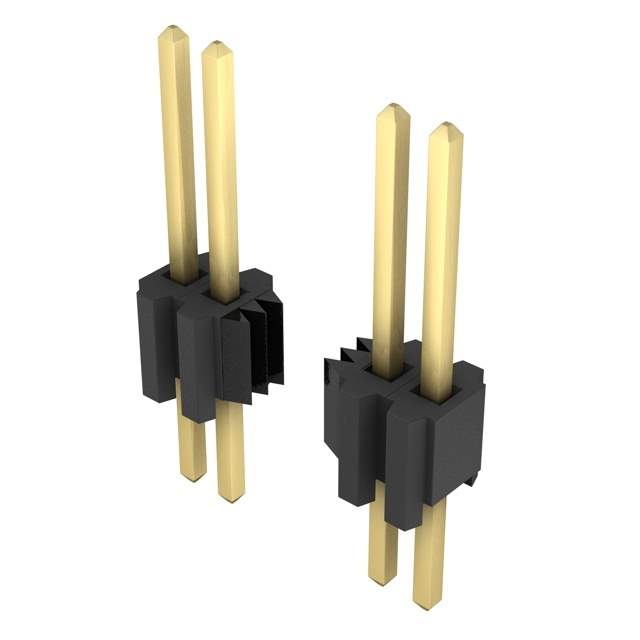

TMS-125-01-G-S Real Image
Same model may have multiple batches, images only for reference.

TMS-125-01-G-S

Part No TMS-125-01-G-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 25POS 1.27MM / Connector Header Through Hole 25 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TMS
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 25
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length 0.450" (11.43mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 5A per Contact
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number TMS-125
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names Q6042128,TMS-125-01-G-S-ND,SAM8878
Standard Package 18
Win Source Part Number 1100324-TMS-125-01-G-S
Ultra Librarian 3D Model Ultra Librarian TMS-125-01-G-S CAD Model

Description

This TMS series male pin header connector is perfect for board-to-board applications.

  • Pitch: 0.050 inches
  • Contact Length (Mating): 0.230 inches
  • Post Length: 0.120-inch
  • Contact Finish (Mating): Gold with a thickness of 10.0μin
  • Contact Finish (Post): 3.00μin
  • Positions Loaded: 25 (single row)
  • Termination: Solder
  • Contact Material: Phosphor bronze
  • Insulation Material: Black liquid crystal polymer (LCP)
  • Insulation Height: 0.100 inches
  • Shrouded: Unshrouded
  • Contact Shape: Square
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 5A per contact
  • Package: Tube
  • Standard Package: 18
  • Alternative Parts: M83513/03-D03N, DWM-30-01-G-S-210, HTMS-125-02-G-S, HTMS-125-01-G-S, 5-104071-4TMS-125-01-G-S.., TMS12501GS
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
