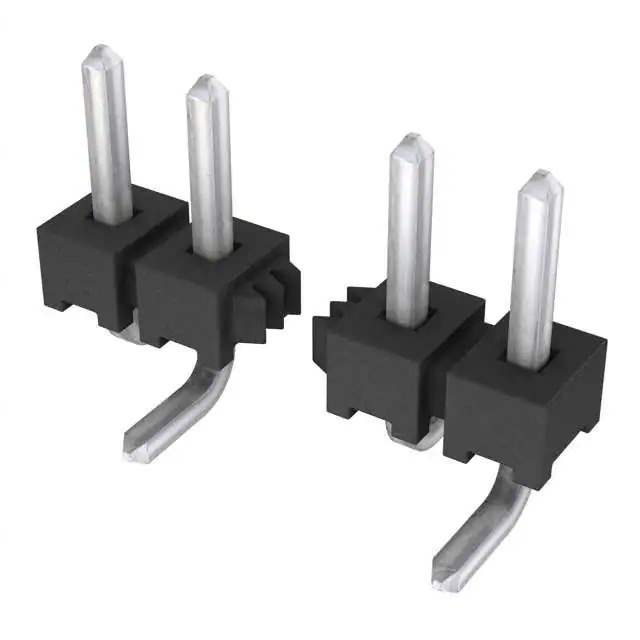

Same model may have multiple batches, images only for reference.

TMM-113-06-T-S-SM

Name: TMM-113-06-T-S-SM
Brand: Samtec Inc.
SKU: 900403
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMM-113-06-T-S-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	2MM TERMINAL STRIP
Datasheet	TMM-113-06-T-S-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMM
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	13
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.168" (4.27mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Base Product Number	TMM-113
Standard Package	22 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	900403-TMM-113-06-T-S-SM
Ultra Librarian 3D Model	Ultra Librarian TMM-113-06-T-S-SM CAD Model

Alternative Products

Description

The TMM-113-06-T-S-SM is a male pin header connector from Samtec Inc.

Category: Rectangular connectors
Positions: 13-position connector
Rows: 1-row configuration
Fastening Type: Push-pull
Mounting: Surface mount
Pitch: 0.079 inches (2.00mm)
Contact Material: Phosphor bronze
Contact Finish: Tin
Insulation Material: Liquid crystal polymer (LCP)
Flammability Rating: UL94 V-0
Operating Temperature Range: -55°C to 105°C
Current Rating: 3.2A per contact
California Prop 65: Compliant
Packaging: Tube
Standard Package: 22 pieces
Status: Active product
ECCN: EAR99
