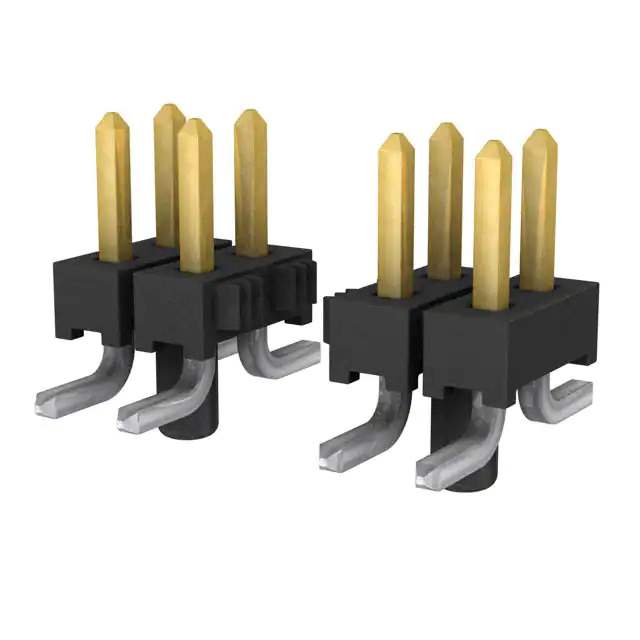

Same model may have multiple batches, images only for reference.

TMM-110-06-S-D-SM-A-P-TR

Name: TMM-110-06-S-D-SM-A-P-TR
Brand: Samtec Inc.
SKU: 900402
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMM-110-06-S-D-SM-A-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	2MM TERMINAL STRIP
Datasheet	TMM-110-06-S-D-SM-A-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMM
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.168" (4.27mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Base Product Number	TMM-110
Standard Package	300 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	900402-TMM-110-06-S-D-SM-A-P-TR
Ultra Librarian 3D Model	Ultra Librarian TMM-110-06-S-D-SM-A-P-TR CAD Model

Alternative Products

Description

The TMM series header is a reliable rectangular connector suitable for various applications.

Positions: 20
Features: Board guide and pick and place
Connector Type: Male pin header
Termination: Solder
Insulation Color: Black
Insulation Material: Liquid crystal polymer (LCP)
Contact Finish (Mating): Gold with a thickness of 30.0µin (0.76µm)
Contact Finish (Post): Tin
Insulation Height: 0.059" (1.50mm)
Operating Temperature Range: -55°C to 125°C
Mounting: Surface mountable
Package: Tape & reel
Status: Active product
Manufacturer: Samtec Inc.
