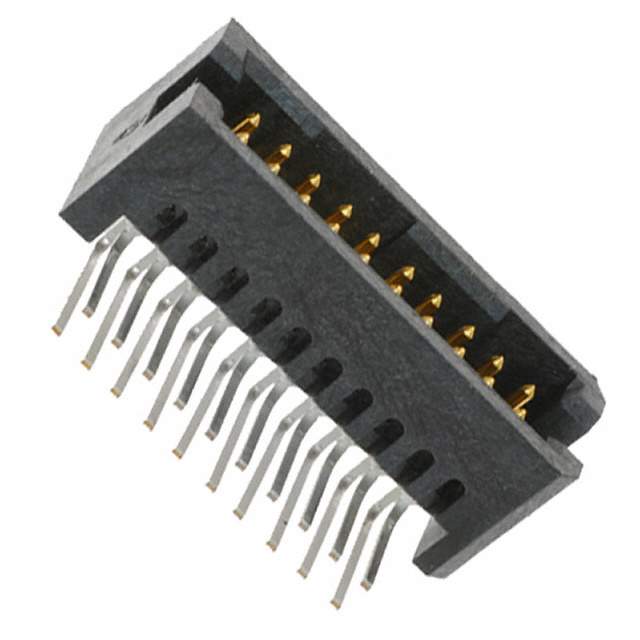

TFML-110-01-S-D-RA

Name: TFML-110-01-S-D-RA
Brand: Samtec Inc.
SKU: 1168438
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TFML-110-01-S-D-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 20POS 1.27MM / Connector Header Through Hole, Right Angle 20 position 0.050" (1.27mm)
Datasheet	TFML-110-01-S-D-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Tiger Eye™ TFML
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Friction Lock
Contact Length - Mating	0.134" (3.39mm)
Contact Length - Post	0.075" (1.91mm)
Insulation Height	0.225" (5.72mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TFML-110
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM8260,TFML11001SDRA
Standard Package	36
Win Source Part Number	1168438-TFML-110-01-S-D-RA
Ultra Librarian 3D Model	Ultra Librarian TFML-110-01-S-D-RA CAD Model

Alternative Products

Description

The Samtec Inc. TFML-110-01-S-D-RA connector is a rectangular connector that comes in a header type with male pins.

Pitch-Mating: 0.050" (1.27mm)
Contact Finish-Mating: Gold, 30.0µin (0.76µm) thickness
Positions Loaded: 20
Rows: 2
Shrouding: Shrouded-4 Wall
Contact Length-Post: 0.075" (1.91mm)
Contact Length-Mating: 0.134" (3.39mm)
Operating Temperature Range: -55°C ~ 125°C
Package: Tube
Standard Package: 36
