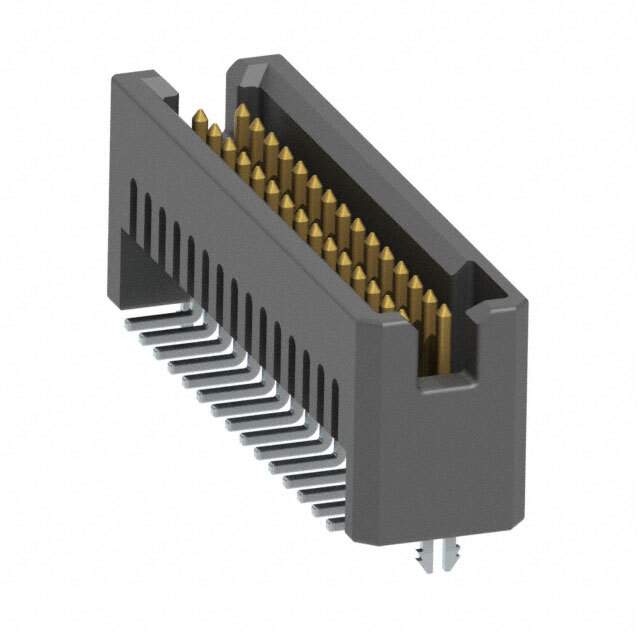

TFM-115-12-S-D-LC Real Image
Same model may have multiple batches, images only for reference.

TFM-115-12-S-D-LC

Part No TFM-115-12-S-D-LC
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 30POS 1.27MM / Connector Header Surface Mount 30 position 0.050" (1.27mm)
Datasheet
TFM-115-12-S-D-LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Tiger Eye™ TFM
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.139" (3.53mm)
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Lock
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.9A per Contact
Voltage Rating 275VAC
Base Product Number TFM-115
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names TFM-115-12-S-D-LC-ND,SAM12081
Standard Package 26
Win Source Part Number 1059290-TFM-115-12-S-D-LC
Ultra Librarian 3D Model Ultra Librarian TFM-115-12-S-D-LC CAD Model

Description

The Tiger Eye™ TFM series header connector from Samtec Inc. is a male pin-type connector with a push-pull fastening type.

  • Positions Loaded: 30
  • Contact Material: phosphor bronze
  • Contact Finish: gold
  • Connection Style: board-to-board or cable
  • Pitch: 0.050 inches (1.27mm)
  • Voltage Rating: 275VAC
  • Operating Temperature: -55°C to 125°C
  • Flammability Rating: UL94 V-0
  • Insulation Material: liquid crystal polymer (LCP)
  • Contact Finish Thickness (Mating): 30.0μin (0.76μm)
  • Contact Finish Thickness (Post): not applicable
  • Mounting: surface
  • Insulation Height: 0.290 inches (7.37mm)
