3382G-1-103G Real Image 3382G-1-103G real image16963
Same model may have multiple batches, images only for reference.
3382G-1-103G Real Image 3382G-1-103G real image16963
3382G-1-103G Real Image 3382G-1-103G real image16963
Same model may have multiple batches, images only for reference.

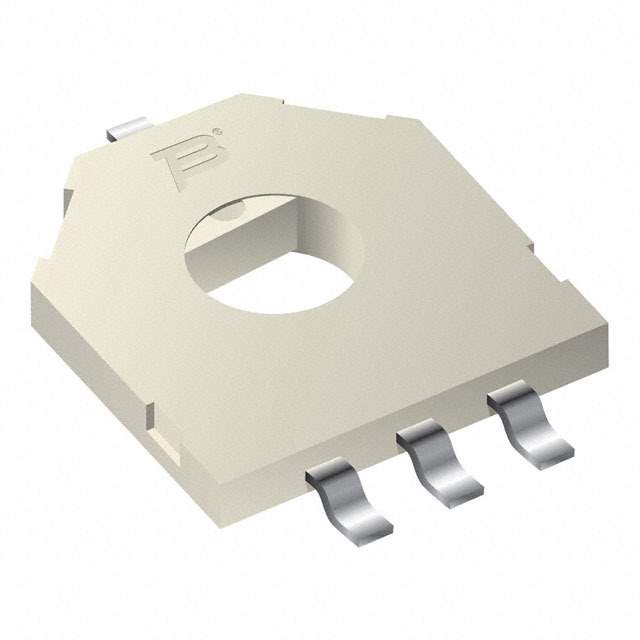

3382G-1-103G

Part No 3382G-1-103G
Manufacturer Bourns Inc.
Catalog Position Sensors - Angle, Linear Position Measuring
Description 12 mm Rotary Position Sensor | SENSOR ROTARY 330DEG SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Bourns Inc.
Packaging Reel
For Measuring Rotary Position
Technology Resistive
Rotation Angle - Electrical, Mechanical 0° ~ 330°, Continuous
Output Resistive
Output Signal Clockwise Increase
Actuator Type Hole for Shaft
Linearity ±2%
Resistance 10 kOhms
Resistance Tolerance ±30%
Mounting Style SMD
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 120°C
Manufacturer Package 4-SMD, Gull Wing
Family Part Number 3382G
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128237-3382G-1-103G
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3382G-1-103G CAD Model

Description

The Bourns Inc. 3382G-1-103G is a resistive rotary position sensor that comes in a reel packaging.

  • Termination & Mounting: It has a termination style of SMD (SMT) tab and a mounting style of SMD.
  • Output: The sensor has an output signal of clockwise increase with an output of resistive.
  • Actuator: It has a hole for shaft actuator type and a resistance tolerance of ±30%.
  • Resistance: The resistance is 10 kOhms and it is used for measuring rotary position.
  • Linearity & Rotation Angle: The linearity of the sensor is ±2% and has a rotation angle of 0° ~ 330°, continuous.
  • Operating Temperature: The operating temperature range is from -40°C to 120°C.
  • Supply: It is in limited supply.
