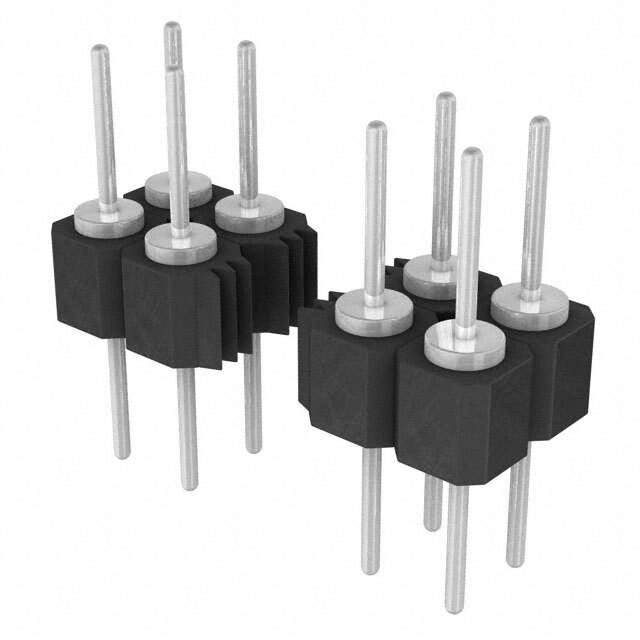

TD-114-T-A Real Image
Same model may have multiple batches, images only for reference.

TD-114-T-A

Part No TD-114-T-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 28POS 2.54MM / Connector Header Through Hole 28 position 0.100" (2.54mm)
Datasheet
TD-114-T-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TD
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 28
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.166" (4.22mm)
Contact Length - Post 0.156" (3.96mm)
Overall Contact Length 0.477" (12.12mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 200.0µin (5.08µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TD-114
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1114-14
Standard Package 1
Win Source Part Number 1098796-TD-114-T-A
Ultra Librarian 3D Model Ultra Librarian TD-114-T-A CAD Model

Description

The TD-114-T-A is a rectangular connector header from Samtec Inc. It has 28 positions with a pitch connector of 0.100" (2.54mm) and is mounted through-hole.

  • Connector Type: Rectangular Connector Header
  • Manufacturer: Samtec Inc.
  • Positions: 28
  • Pitch Connector: 0.100" (2.54mm)
  • Mounting Type: Through-Hole
  • Contact Type: Male Pin
  • Shrouded: Unshrouded
  • Contact Material: Phosphor Bronze
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 200.0µin (5.08µm)
  • Contact Finish - Post: Tin
  • Contact Length - Post: 0.156" (3.96mm)
  • Overall Contact Length: 0.477" (12.12mm)
  • Insulation Height: 0.100" (2.54mm)
  • Application: Board to Board
  • Temperature Range - Operating: -55°C to 105°C
  • Popularity: Medium
  • MSL Level: Unlimited
