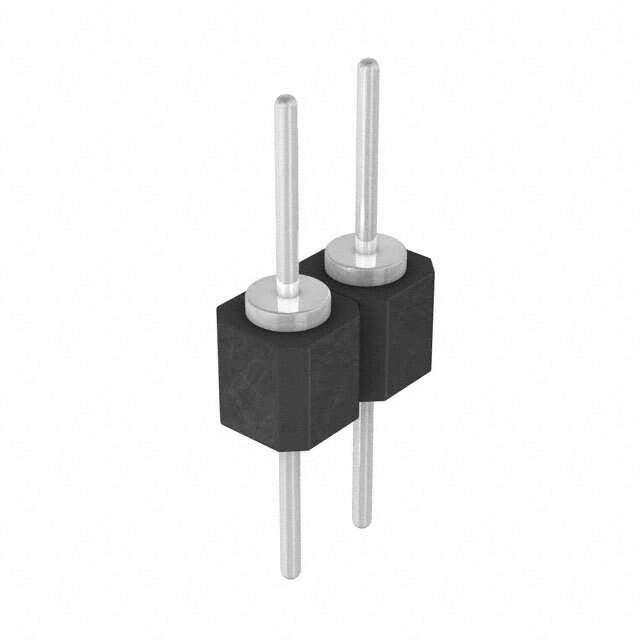

Same model may have multiple batches, images only for reference.

TD-101-T-A

Name: TD-101-T-A
Brand: Samtec Inc.
SKU: 1016030
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TD-101-T-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 1POS / Connector Header Through Hole 1 position
Datasheet	TD-101-T-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TD
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Number of Positions	1
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.166" (4.22mm)
Contact Length - Post	0.156" (3.96mm)
Overall Contact Length	0.477" (12.12mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	200.0µin (5.08µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TD-101
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1114-01
Standard Package	1
Win Source Part Number	1016030-TD-101-T-A
Ultra Librarian 3D Model	Ultra Librarian TD-101-T-A CAD Model

Description

The TD series header is a male pin rectangular connector with a single position. The connector features a solder termination and push-pull fastening type. Its contact material is phosphor bronze, and the contact finish is tin with a thickness of 200.0µin (5.08µm). The connector is ECCN: EAR99 compliant, and its HTSUS code is 8536.69.4040. It is manufactured by Samtec Inc.
