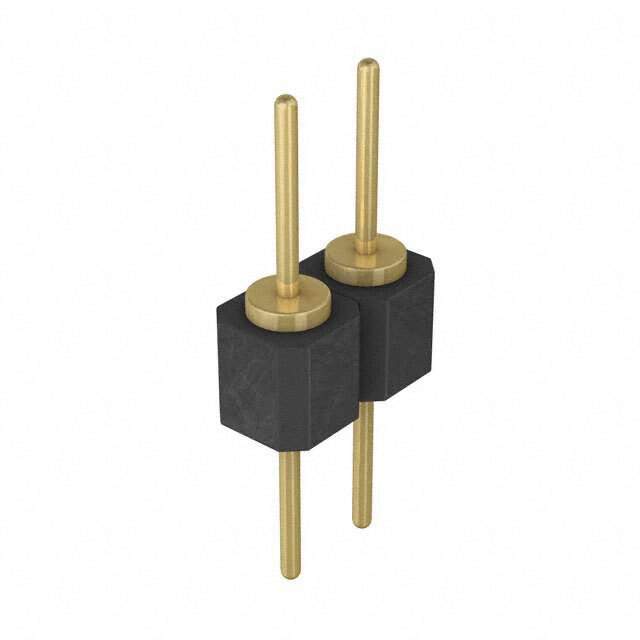

TD-101-G-A Real Image
Same model may have multiple batches, images only for reference.

TD-101-G-A

Part No TD-101-G-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 1POS / Connector Header Through Hole 1 position
Datasheet
TD-101-G-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TD
Package Bulk
Connector Type Header
Contact Type Male Pin
Number of Positions 1
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.166" (4.22mm)
Contact Length - Post 0.156" (3.96mm)
Overall Contact Length 0.477" (12.12mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TD-101
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1113-01
Standard Package 1
Win Source Part Number 1151492-TD-101-G-A
Ultra Librarian 3D Model Ultra Librarian TD-101-G-A CAD Model

Description

The Samtec Inc. electronic component is a connector with a rectangular header and male pins.

  • Connector Type: Header
  • Contact Type: Male Pin
  • Series: TD
  • Positions: 1
  • All Positions Loaded: Yes
  • Rows: 1
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Bulk
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polyester, Glass-Filled
  • Style: Board to Board
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 20.0µin (0.51µm)
  • Insulation Color: Black
  • Mounting Type: Through Hole
  • Shrouded: Unshrouded
  • Contact Length-Post: 0.156” (3.96mm)
  • Overall Contact Length: 0.477” (12.12mm)
  • Insulation Height: 0.100” (2.54mm)
  • Contact Shape: Circular
  • Operating Temperature Range: -55°C to 125°C
  • Win Source Part Number: 1151492-TD-101-G-A
  • Base Product Number: TD-101
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.69.4040
