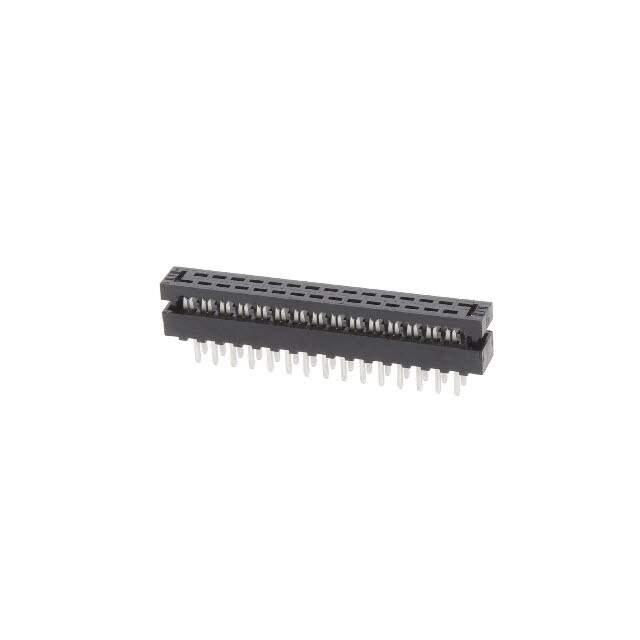

TCMD-15-01 Real Image
Same model may have multiple batches, images only for reference.

TCMD-15-01

Part No TCMD-15-01
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER 30POS IDC 28AWG GOLD / 30 Position Rectangular Header Connector IDC Tin 28 AWG
Datasheet
TCMD-15-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Samtec Inc.
Series Tiger Eye™ TCMD
Package Tube
Connector Type Header
Contact Type Male Pin
Number of Positions 30
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through
Contact Finish Tin
Color Black
Base Product Number TCMD-15
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Names SAM12013,TCMD-15-01-ND
Standard Package 17
Win Source Part Number 1152004-TCMD-15-01
Ultra Librarian 3D Model Ultra Librarian TCMD-15-01 CAD Model

Description

The Tiger Eye™ TCMD is a 30-position header connector with a pitch of 0.079 inches (2.00mm), designed for free hanging and panel mount applications.

  • Pitch: 0.079 inches (2.00mm)
  • Positions: 30
  • Mounting: Free Hanging, Panel Mount
  • Contact Gender: Male Pin
  • Rows: Two
  • Row Spacing: 0.079 inches (2.00mm)
  • Contact Finish: Tin
  • Wire Type: Ribbon Cable
  • Wire Gauge: 28 AWG
  • Package: Tube
  • Standard Package: 17
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Manufacturer: Samtec Inc.
  • Also Known As: SAM12013 and TCMD-15-01-ND
