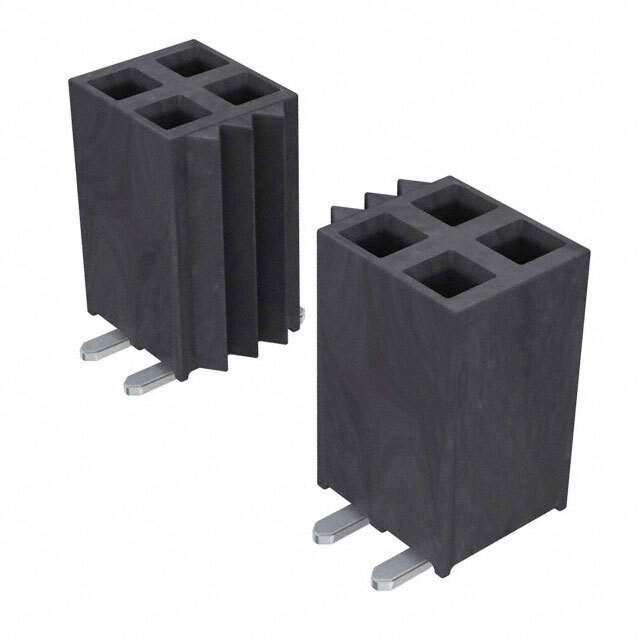

The SSW-112-22-F-D-VS-K-TR is a Samtec Inc. socket strip connector from the SSW series. It is designed for board-to-board connections and comes in tape and reel packaging for automated assembly, also featuring a key for proper alignment.

Applications

• Automated PCB assembly
• Board-to-board connections in electronic devices
• Signal routing within PCBs
• Interconnects in communication systems
• Industrial control equipment

Features

• Pitch: 2.54 mm (0.100")
• Number of Contacts: 24 (12 per row x 2 rows)
• Number of Rows: 2
• Termination Style: Through Hole
• Body Orientation: Straight
• Contact Material: Phosphor Bronze
• Insulator Material: Black UL 94V-0 Polyester
• Plating: Gold plated contacts for enhanced conductivity and durability
• Voltage Rating: 600 VAC
• Current Rating: 3 A
• Keying: Keyed for proper alignment during mating
• Packaging: Tape & Reel (TR) for automated assembly
• Mates with: TSM Series

Benefits

• Reliable Connection: Gold-plated contacts ensure a stable and low-resistance connection.
• Secure Mating: Keying feature prevents mismating.
• Automated Assembly: Tape & Reel packaging facilitates automated placement.
• Versatile Application: Suitable for a wide range of board-to-board connections.
• Durable Construction: Polyester insulator provides good electrical and mechanical properties.

The SSW-112-22-F-D-VS-K-TR socket strip connector is designed for through-hole mounting on PCBs. The 'VS' indicates vertical surface mount compatibility. The 'K' signifies the keying feature, and 'TR' designates Tape & Reel packaging. It mates with the TSM series headers from Samtec.
