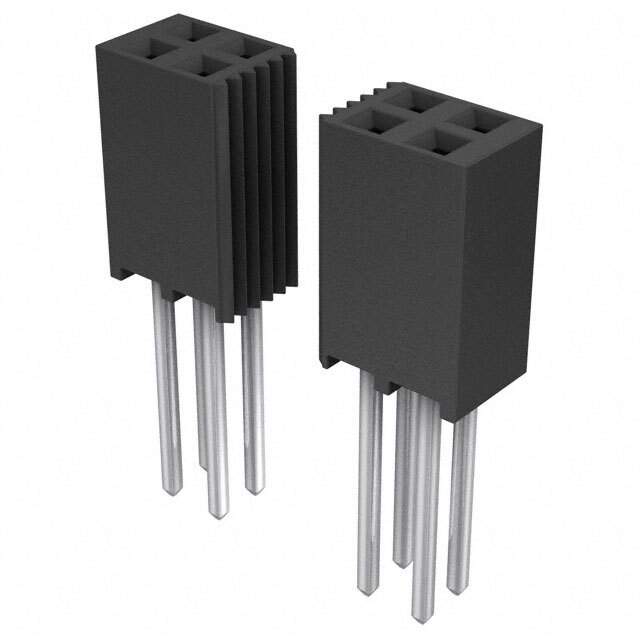

The SSQ-148-03-S-D connector is a rectangular connector that is widely used in female sockets and headers. It is manufactured by Samtec Inc.

• Loaded Positions: all
• Number of Rows: two
• Termination: solder
• Fastening Type: push-pull
• Contact Material: phosphor bronze
• Voltage Rating: 465VAC and 655VDC
• Insulation Material: liquid crystal polymer (LCP)
• Flammability Rating: UL94 V-0
• Style: board to board or cable style
• Pitch Mating: 0.100 inches (2.54mm)
• Contact Finish Mating: Gold with a thickness of 30.0µin (0.76µm)
• Contact Finish Post: Tin
• Insulation Color: black
• Mounting Type: through-hole
• Row Spacing Mating: 0.100 inches (2.54mm)
• Contact Length Post: 0.394 inches (10.00mm)
• Insulation Height: 0.335 inches (8.51mm)
• Contact Shape: square
• Temperature Range: -55°C to 125°C
• ECCN: EAR99
