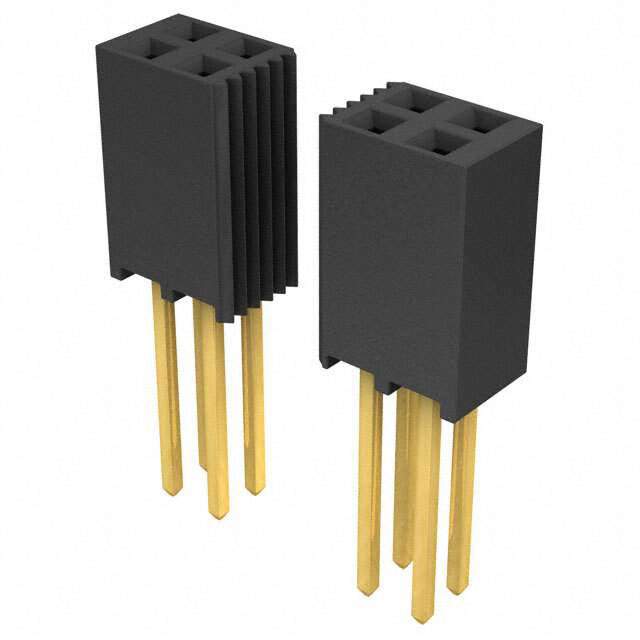

This rectangular connector from Samtec Inc. is part of the SSQ series and is designed for use in headers, receptacles, and female sockets.

• Connector Type: Receptacle
• Contact Type: Forked
• Positions: All positions are loaded
• Rows: Two
• Termination: Solder
• Fastening Type: Push-pull
• Package: Bulk
• Contact Material: Phosphor bronze
• Voltage Rating: 465VAC, 655VDC
• Insulation Material: Liquid crystal polymer (LCP)
• Style: Board to board or cable
• Pitch Mating: 0.100 inches (2.54mm)
• Contact Finish Mating: Gold
• Contact Finish Thickness Mating: 20.0 microinches (0.51 micrometers)
• Contact Finish Post: Gold
• Contact Finish Thickness Post: 3.00 microinches (0.076 micrometers)
• Insulation Color: Black
• Mounting Type: Through hole
• Row Spacing Mating: 0.100 inches (2.54mm)
• Contact Length Post: 0.394 inches (10.00mm)
• Insulation Height: 0.335 inches (8.51mm)
• Contact Shape: Square
• Temperature Range: -55 to 125 degrees C
• MSL Level: Not applicable
• HTSUS: 8536.69.4040
• Other Names: SAM1196-48
• Base Product Number: SSQ-148
