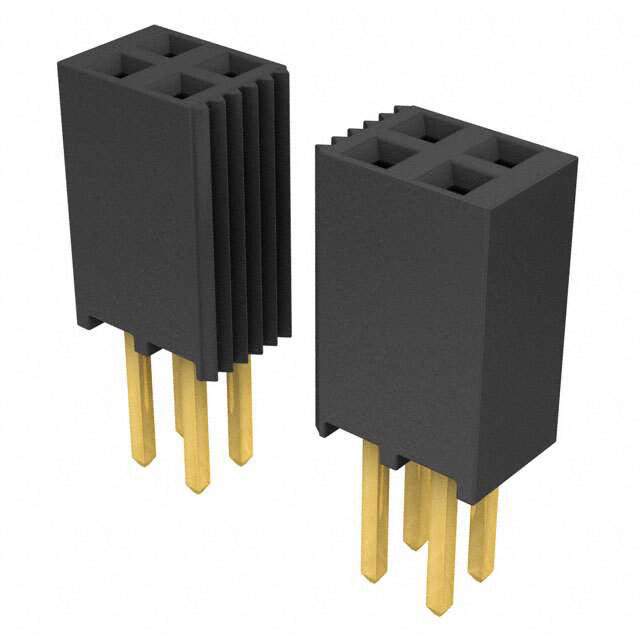

The Samtec Inc. connector with Win Source Part Number 1291507-SSQ-145-02-G-D is a receptacle type connector with forked contact type.

• Positions: 90
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-pull
• Package: Bulk
• Contact Material: Phosphor bronze
• Voltage Rating: 465VAC, 655VDC
• Category: Connectors, Interconnects > Rectangular Connectors - Headers, Receptacles, Female Sockets
• Series: SSQ
• Connection Style: Board to board or cable
• Pitch: 0.100" (2.54mm)
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 20.0µin (0.51µm)
• Contact Finish - Post: Gold
• Contact Finish Thickness - Post: 3.00µin (0.076µm)
• Insulation Material: Liquid crystal polymer (LCP)
• Insulation Color: Black
• Mounting Type: Through hole
• Row Spacing - Mating: 0.100" (2.54mm)
• Contact Length - Post: 0.194" (4.93mm)
• Insulation Height: 0.335" (8.51mm)
• Contact Shape: Square
• Operating Temperature Range: -55°C ~ 125°C
• MSL Level: Not applicable
