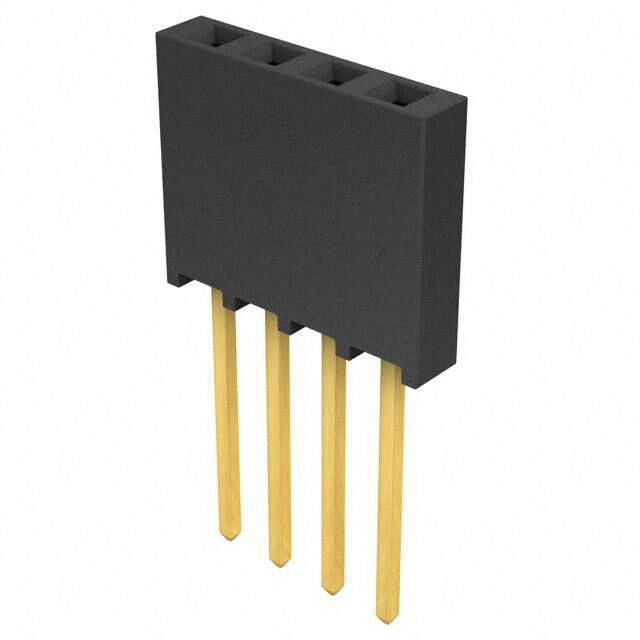

The Samtec Inc. SSQ-104-03-G-S is a rectangular connector that belongs to the Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets category.

• Series: SSQ
• Positions: four
• Connector Type: receptacle
• Contact Type: forked
• Positions Loaded: All
• Row Count: one
• Termination Type: solder
• Fastening Type: push-pull
• Package: bulk
• Contact Material: phosphor bronze
• Voltage Rating: 465VAC, 655VDC
• Mated Stacking Heights: none
• Material Flammability Rating: UL94 V-0
• Standard Package: one
• Insulation Material: liquid crystal polymer (LCP)
• Style: board to board or cable
• Pitch-Mating: 0.100 inches or 2.54 millimeters
• Contact Finish-Mating: gold
• Contact Finish Thickness-Mating: 20.0µin (0.51µm)
• Contact Finish-Post: gold
• Contact Finish Thickness-Post: 3.00µin (0.076µm)
• Insulation Color: black
• Mounting Type: through-hole
• Contact Length-Post: 0.394 inches or 10.00 millimeters
• Insulation Height: 0.335 inches or 8.51 millimeters
• Contact Shape: square
• Temperature Range-Operating: -55°C ~ 125°C
• Manufacturer: Samtec Inc.
• Other Names: SAM1198-04
• Base Product Number: SSQ-104
