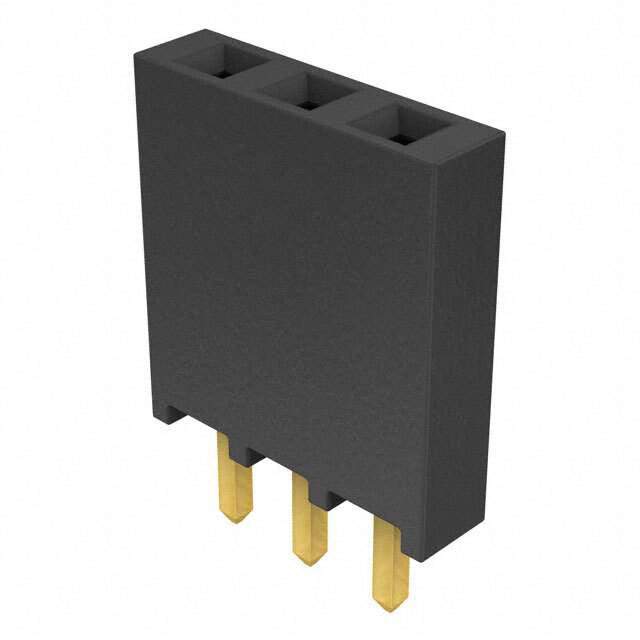

The SSQ-103-01-G-S is a rectangular connector belonging to the SSQ series.

• Series: SSQ
• Positions: 3
• Connector Type: Receptacle
• Contact Type: Forked
• Positions Loaded: All
• Rows: Single
• Termination: Solder
• Fastening Type: Push-Pull
• Mounting Type: Through-Hole
• Contact Material: Phosphor Bronze
• Voltage Rating: 465VAC, 655VDC
• Contact Finish (Mating): Gold, 20.0µin (0.51µm)
• Contact Finish (Post): Gold, 3.00µin (0.076µm)
• Insulation Material: Liquid Crystal Polymer (LCP)
• Color: Black
• Pitch (Mating): 0.100" (2.54mm)
• Contact Length (Post): 0.104" (2.64mm)
• Insulation Height: 0.335" (8.51mm)
• Contact Shape: Square
• Operating Temperature Range: -55°C to 125°C
• Cross-Reference: 2212S-03SG-85, SSW-103-01-G-S, BCS-103-L-S-PE, 215297-3, SSW-103-01-T-S, 76341-303LF, and 71920-303LFSSQ10301GS
• Current Rating (Amps): N/A
• REACH: Unaffected
• HTSUS Code: 8536.69.4040
• Manufacturer: Samtec Inc.
