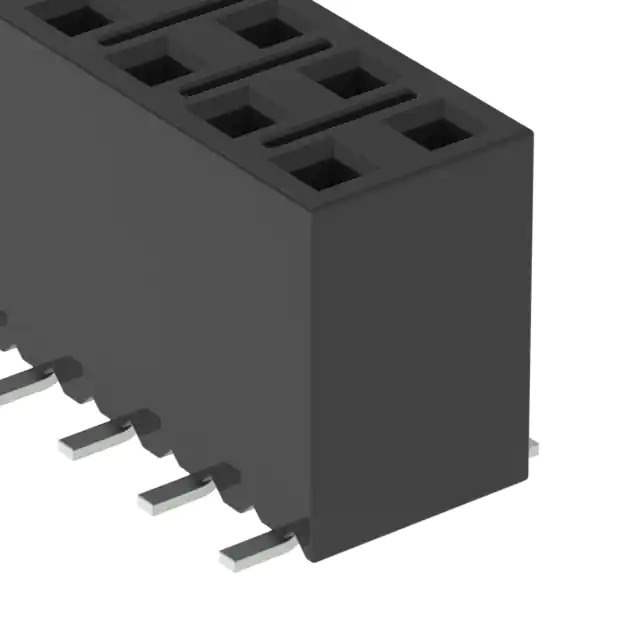

Same model may have multiple batches, images only for reference.

SSM-108-S-DV-LC-P-TR

Name: SSM-108-S-DV-LC-P-TR
Brand: Samtec Inc.
SKU: 935063
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSM-108-S-DV-LC-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 16POS 0.1 GOLD SMD / 16 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Lock, Pick and Place
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-108
Standard Package	250 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	935063-SSM-108-S-DV-LC-P-TR
Ultra Librarian 3D Model	Ultra Librarian SSM-108-S-DV-LC-P-TR CAD Model

Alternative Products

Description

The SSM-108-S-DV-LC-P-TR is a 16-position receptacle connector from Samtec Inc.

Product Name: SSM-108-S-DV-LC-P-TR
Manufacturer: Samtec Inc.
Positions: 16
Board Lock: Yes
Pick and Place: Yes
Pitch: 0.100" (2.54mm)
Mounting: Surface Mount
Voltage Rating: 405VAC and 572VDC
Contact Material: Phosphor Bronze
Contact Finish: Gold
Insulation Material: Liquid Crystal Polymer (LCP)
Temperature Range: -55°C to 125°C
Current Rating: 5.2A per contact
Packaging: Tape & Reel
Product Status: Active
