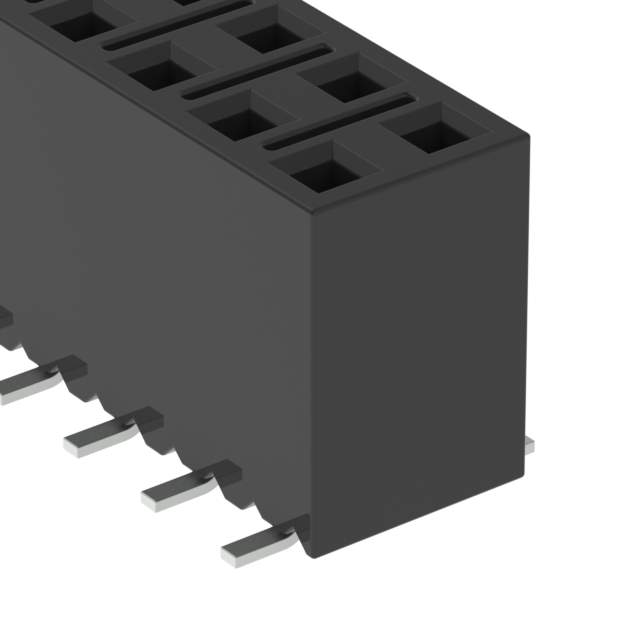

The SSM-107-L-DV-BE-K-TR is a 14-position, 2-row, receptacle connector with a push-pull fastening type.

• Connections: Designed for board to board or cable style connections.
• Contact Type: Female socket.
• Termination: Solder.
• Contact Material: Phosphor bronze with gold plating for mating and tin plating for post.
• Voltage Rating: 405VAC and 572VDC.
• Insulation Material: Liquid crystal polymer (LCP) with black insulation color.
• Contact Finish Thickness: 10.0µin (0.25µm) for mating and for post is not specified.
• Insulation Height: 0.290” (7.37mm).
• Contact Length: For post is not specified.
• Temperature Range: Operating between -55°C to 125°C.
