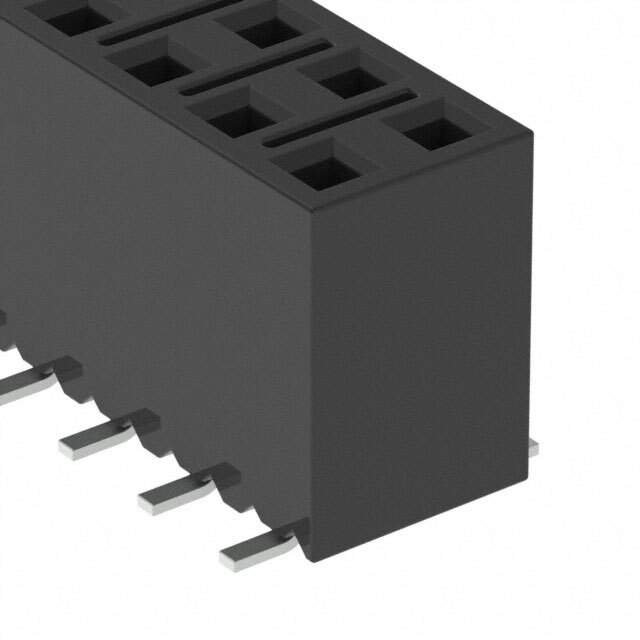

Same model may have multiple batches, images only for reference.

SSM-106-L-DV-A

Name: SSM-106-L-DV-A
Brand: Samtec Inc.
SKU: 1291793
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSM-106-L-DV-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSM-106-L-DV-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Tube
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	12
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Guide
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-106
Other Names	SAM11895,SSM-106-L-DV-A
Standard Package	37
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1291793-SSM-106-L-DV-A
Ultra Librarian 3D Model	Ultra Librarian SSM-106-L-DV-A CAD Model

Alternative Products

Description

The SSM series 12 position female socket connector is a high-quality and reliable component for your electronic devices.

Pitch: 0.100 inches
Application: Board-to-board or cable applications
Contact Material: Phosphor bronze
Contact Finish: Gold
Current Rating: 5.2A per contact
Voltage Rating: 405VAC and 572VDC
Mounting: SMD (SMT)
Fastening Type: Push-pull
Connector Type: Receptacle, pass-through
Socket Type: Female
Feature: Board guides
Package: Tube
