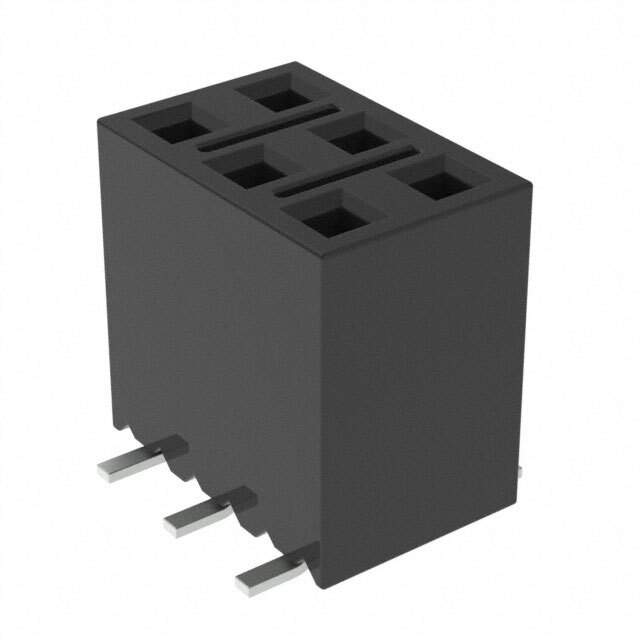

Same model may have multiple batches, images only for reference.

SSM-103-L-DV

Name: SSM-103-L-DV
Brand: Samtec Inc.
SKU: 1291913
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSM-103-L-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSM-103-L-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Bulk
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-103
Other Names	SAM1146-03
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1291913-SSM-103-L-DV
Ultra Librarian 3D Model	Ultra Librarian SSM-103-L-DV CAD Model

Description

The Samtec Inc. SSM-103-L-DV is a rectangular connector receptacle that has 6 positions.

Connection: Board-to-board or cable connector.
Pitch: 0.100" (2.54mm).
Voltage Rating: 405VAC, 572VDC.
Contact Type: Female socket contact type.
Contact Finish: Gold with a thickness of 10.0µin (0.25µm) for mating and tin for post.
Mounting Type: SMD (SMT).
Standard Package: 1.
Series: SSM series.
ROHS Compliant: Yes.
ECCN: EAR99 compliant.
HTSUS: 8536.69.4040.
