Same model may have multiple batches, images only for reference.

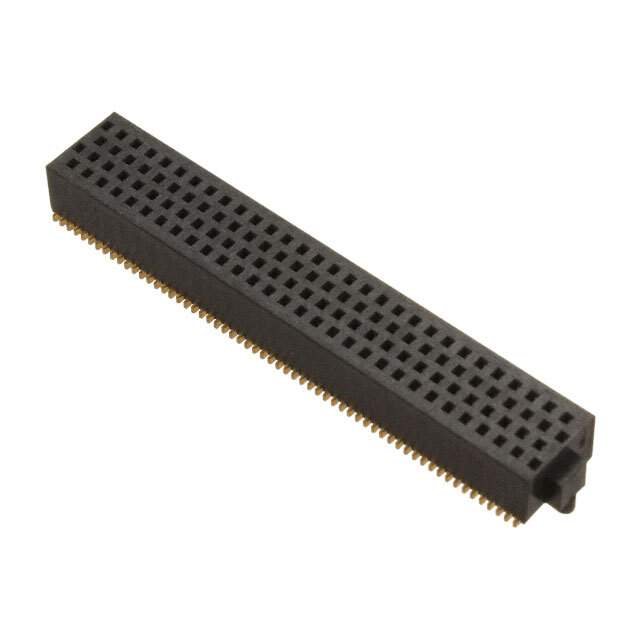

SOLC-130-02-L-Q-A Real Image
Same model may have multiple batches, images only for reference.

SOLC-130-02-L-Q-A

Part No SOLC-130-02-L-Q-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 120POS 0.05 GOLD SMD / 120 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series FOURRAY™ SOLC
Package Tube
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 120
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 4
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.160" (4.06mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Board Guide
Current Rating (Amps) 2.4A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SOLC-130
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SOLC-130-02-L-Q-A-ND,SAM15798
Standard Package 14
Win Source Part Number 1029408-SOLC-130-02-L-Q-A
Ultra Librarian 3D Model Ultra Librarian SOLC-130-02-L-Q-A CAD Model

Description

The SOLC-130-02-L-Q-A is a receptacle connector from Samtec Inc.

  • Series: FOURRAY™ SOLC
  • Positions: 120
  • Features: Board Guides, Forked Contacts
  • Fastening: Push-Pull
  • Positions Loaded: All
  • Rows: Four
  • Termination: Solder
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Pitch: 0.050" (1.27mm)
  • Mating Contact Finish Thickness: 10.0µin (0.25µm)
  • Post Contact Finish Thickness: 3.00µin (0.076µm)
  • Color: Black
  • Insulation Height: 0.160" (4.06mm)
  • Temperature Range: -55°C to 125°C
  • Current Rating: 2.4A per contact
  • Application: Board-to-board
