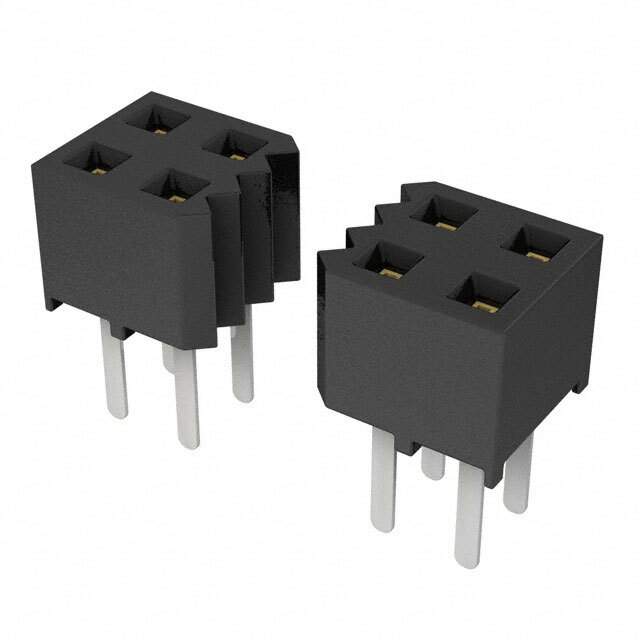

SMM-115-01-S-D Real Image
Same model may have multiple batches, images only for reference.

SMM-115-01-S-D

Part No SMM-115-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SMM-115-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SMM
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.140" (3.56mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.2A per Contact
Voltage Rating 350VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SMM-115
Other Names SAM12864,SMM-115-01-S-D
Standard Package 19
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285352-SMM-115-01-S-D
Ultra Librarian 3D Model Ultra Librarian SMM-115-01-S-D CAD Model

Description

The Samtec Inc. SMM-115-01-S-D is a 30-position Tiger Eye™ SMM series header connector that is designed for use in rectangular connectors.

  • Series: Tiger Eye™ SMM
  • Positions: 30
  • Connector Type: Receptacle
  • Contact Type: Female socket
  • Rows: Two
  • Mounting: Through hole
  • Fastening Type: Push-pull
  • Pitch: 0.079" (2.00mm)
  • Contact Finish - Mating: Gold
  • Insulation Color: Black
  • Application: Board to board or cable
  • Manufacturer: Samtec Inc.
