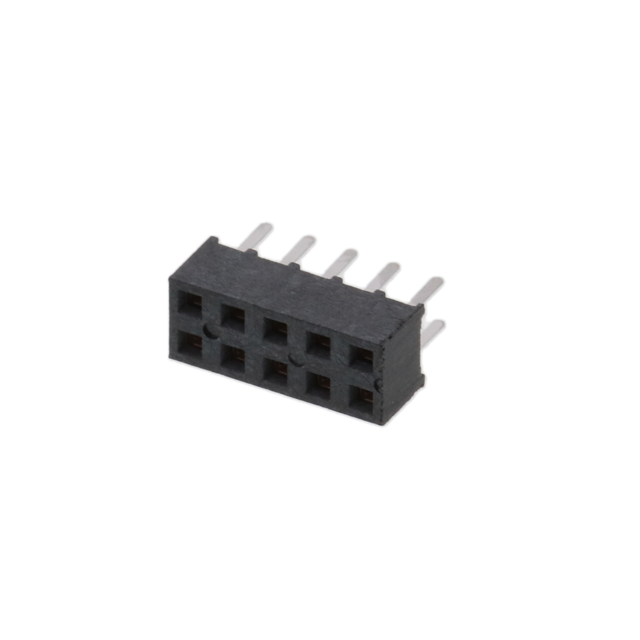

Name: SMM-105-01-L-D
Brand: Samtec Inc.
SKU: 1285333
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SMM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.140" (3.56mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3.2A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SMM-105
Other Names	SAM15112,SMM-105-01-L-D
Standard Package	58
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285333-SMM-105-01-L-D
Ultra Librarian 3D Model	Ultra Librarian SMM-105-01-L-D CAD Model

Description

The Samtec Tiger Eye SMM-105-01-L-D is a rectangular connector that has 10 positions and is designed for use in board-to-board or cable applications.

Manufacturer: Samtec
Series: Tiger Eye
Model: SMM-105-01-L-D
Positions: 10
Application: Board-to-board or Cable
Pitch: 0.079" (2.00mm)
Voltage Rating: 350VAC
Connector Type: Receptacle
Contact Type: Female Socket
Contact Material: Beryllium Copper
Contact Finish: Gold
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Mounting: Through-hole
Row Spacing: 0.079" (2.00mm)
Current Rating: 3.2A per contact
Operating Temperature: -55°C ~ 125°C
