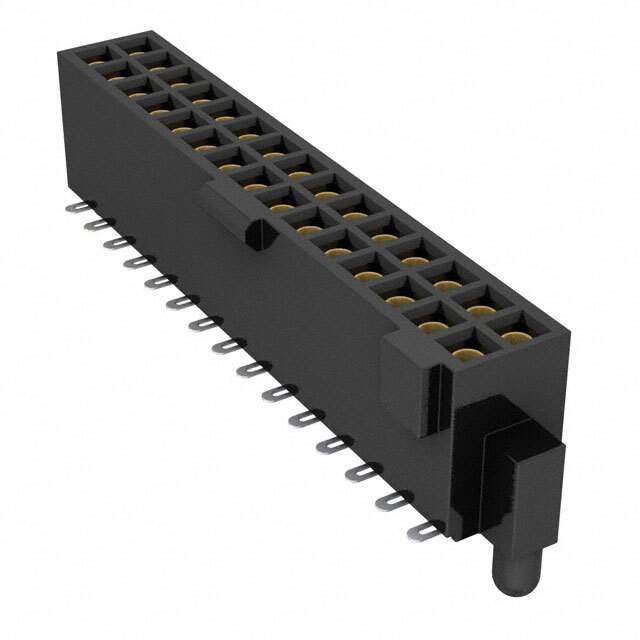

Same model may have multiple batches, images only for reference.

SFML-115-02-S-D-A-K

Name: SFML-115-02-S-D-A-K
Brand: Samtec Inc.
SKU: 1285427
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFML-115-02-S-D-A-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFML-115-02-S-D-A-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFML
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Guide, Pick and Place
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Base Product Number	SFML-115
Other Names	Q4284224
Standard Package	25
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285427-SFML-115-02-S-D-A-K
Ultra Librarian 3D Model	Ultra Librarian SFML-115-02-S-D-A-K CAD Model

Alternative Products

Description

The SFML-115-02-S-D-A-K is a rectangular connector from Samtec Inc.

Positions: 30
Insulation Material: Liquid Crystal Polymer
Contact Finish: Gold
Contact Finish Thickness: 30.0μin
Current Rating: 3.2A per contact
Voltage Rating: 250VAC
Package: Tube
Temperature Range: -55°C to 125°C
RoHS Compliant: Yes
Material Flammability Rating: UL94 V-0
