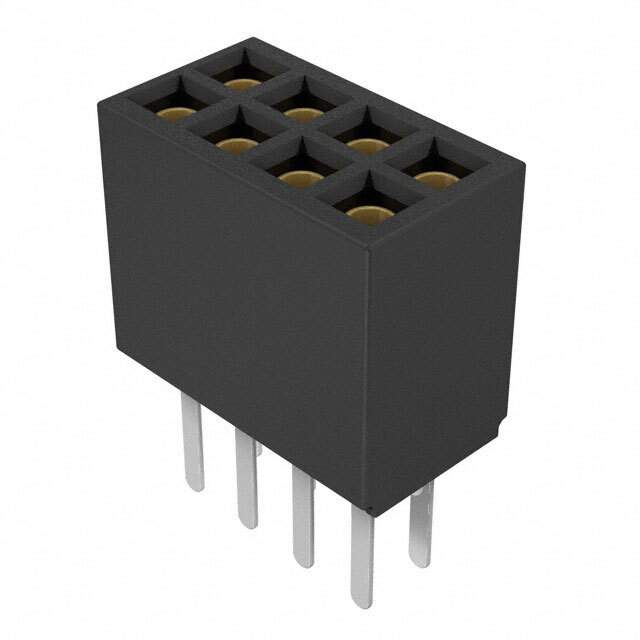

SFMC-104-T1-L-D-TR Real Image
Same model may have multiple batches, images only for reference.

SFMC-104-T1-L-D-TR

Part No SFMC-104-T1-L-D-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMC-104-T1-L-D-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMC
Package Tape & Reel (TR)
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2.9A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SFMC-104
Standard Package 600
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1286380-SFMC-104-T1-L-D-TR
Ultra Librarian 3D Model Ultra Librarian SFMC-104-T1-L-D-TR CAD Model

Description

The Samtec Inc. SFMC-104 is a rectangular connector that is designed for use in board-to-board or cable applications.

  • Connector Type: receptacle
  • Contact Type: female socket
  • Voltage Rating: -
  • Current Rating: 2.9A per contact
  • Insulation Color: black
  • Insulation Material: liquid crystal polymer (LCP)
  • Pitch-Mating: 0.050" (1.27mm)
  • Contact Finish-Mating: gold
  • Contact Finish Thickness-Mating: 10.0µin (0.25µm)
  • Contact Finish-Post: tin
  • Mounting Type: through-hole
  • Row Spacing-Mating: 0.050" (1.27mm)
  • Insulation Height: 0.180" (4.57mm)
  • Contact Shape: square
  • Suitable for: various applications that require high performance and reliability
