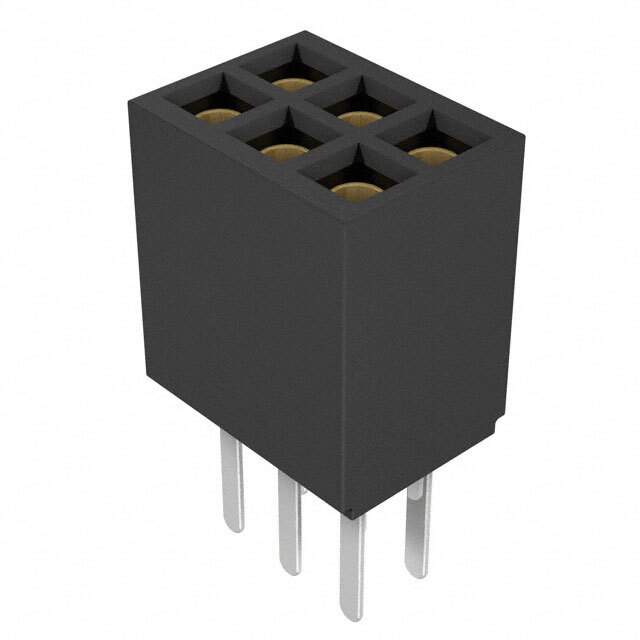

SFMC-103-03-S-D Real Image
Same model may have multiple batches, images only for reference.

SFMC-103-03-S-D

Part No SFMC-103-03-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMC-103-03-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMC
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.075" (1.91mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2.9A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFMC-103
Other Names SAM11728,SFMC-103-03-S-D
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1286717-SFMC-103-03-S-D
Ultra Librarian 3D Model Ultra Librarian SFMC-103-03-S-D CAD Model

Description

The SFMC-103-03-S-D connector from Samtec Inc. is part of the Tiger Eye™ SFMC series and features a receptacle connector type with a female socket contact type.

  • Positions: 6
  • All Positions Loaded: Yes
  • Pitch-Mating: 0.050" (1.27mm)
  • Row Spacing-Mating: 0.050" (1.27mm)
  • Current Rating: 2.9A per contact
  • Mounting: Through-Hole
  • Insulation Height: 0.180" (4.57mm)
  • Package: Bulk
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
