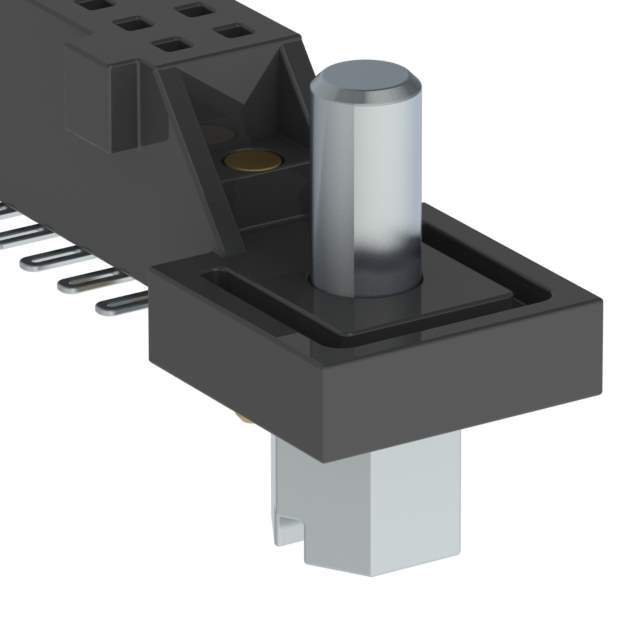

The Tiger Eye™ SFM series connectors are a perfect solution for board to board or cable applications.

• Fastening Type: Push-Pull
• Contact Shape: Square
• Voltage Rating: 250VAC
• Current Rating: 3.2A per contact
• Number of Rows: 2
• Number of Positions: 80
• Positions Loaded: All
• Contact Material: Beryllium Copper
• Contact Finish (Mating): Gold with a thickness of 30.0μin (0.76μm)
• Contact Finish (Post): Tin
• Mounting Features: Mounting Flange and Mounting Hardware
• Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, and 11.76mm
• Insulation Height: 0.185" (4.70mm)
• Insulation Material: Liquid Crystal Polymer (LCP)
• Temperature Range: -55°C ~ 125°C
• Package: Tube
