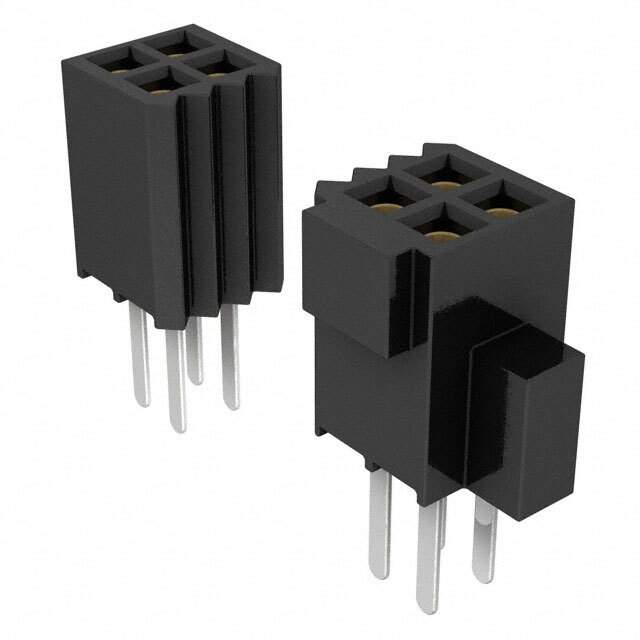

Name: SFM-125-01-L-D
Brand: Samtec Inc.
SKU: 1286986
Availability: InStock

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	50
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-125
Other Names	SAM9892
Standard Package	16
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1286986-SFM-125-01-L-D
Ultra Librarian 3D Model	Ultra Librarian SFM-125-01-L-D CAD Model

Description

The Tiger Eye™ SFM series SFM-125-01-L-D connector from Samtec Inc. has 50 positions and is a reliable choice for your electronic needs.

Connector Type: Receptacle
Contact Type: Female socket
Positions Loaded: All
Rows: Two
Termination: Solder
Fastening Type: Push-pull
Contact Material: Beryllium copper
Contact Finish: Gold
Voltage Rating: 250VAC
Mounting: Through hole
Pitch: 0.050" (1.27mm)
Contact Finish Thickness: 10.0µin (0.25µm)
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Contact Shape: Square
Temperature Range: -55°C ~ 125°C
