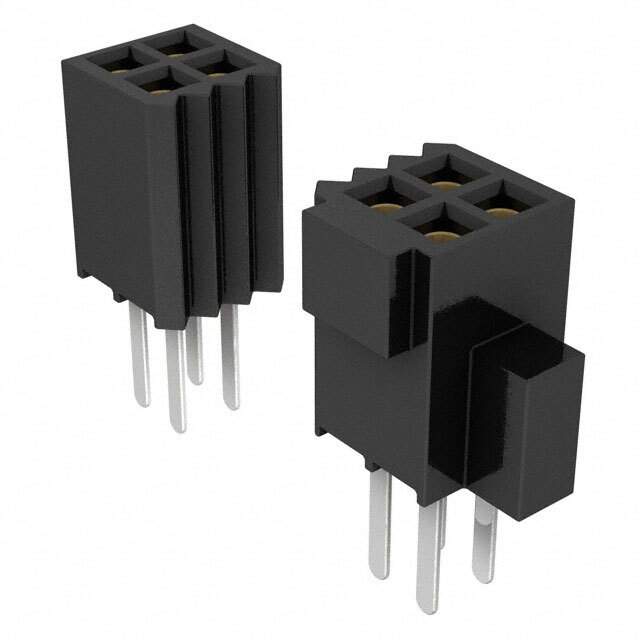

Name: SFM-115-01-L-D
Brand: Samtec Inc.
SKU: 1286879
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-115
Other Names	SAM12830,SFM-115-01-L-D
Standard Package	25
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1286879-SFM-115-01-L-D
Ultra Librarian 3D Model	Ultra Librarian SFM-115-01-L-D CAD Model

Description

The Tiger Eye™ SFM series rectangular connector is a female socket receptacle connector with 30 positions.

Fastening Type: Push-pull
Application: Board-to-board or cable connections
Pitch: 0.050" (1.27mm)
Mounting: Through-hole
Contact Material: Beryllium copper
Insulation Material: Liquid crystal polymer (LCP)
Temperature Range: -55°C ~ 125°C
Current Rating: 3.2A per contact
Package: Tube
Standard Package: 25
REACH: Unaffected
ECCN: EAR99 compliant
Manufacturer: Samtec Inc.
Other Names: SAM12830, SFM-115-01-L-D
Base Product Number: SFM-115
