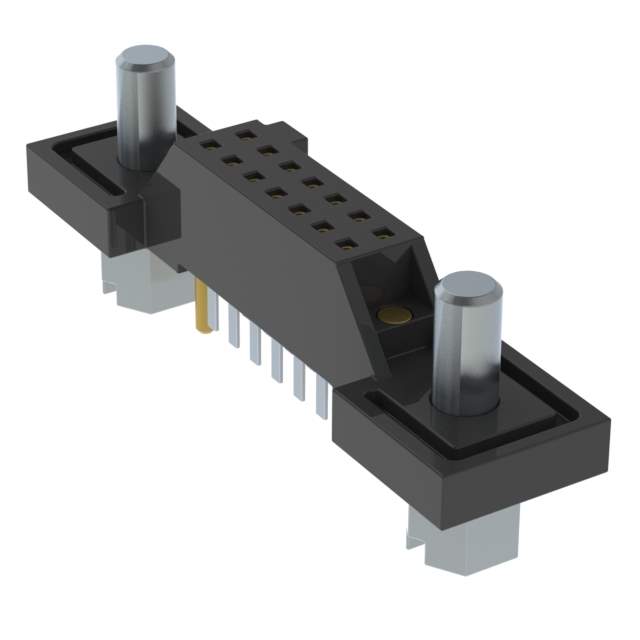

The Tiger Eye™ SFM series SFM-107-03-L-D-DS receptacle connector from Samtec Inc. features 14 positions, 2 rows, and female socket contact type.

• Positions: 14
• Rows: 2
• Contact Type: Female socket
• Style: Board to board or cable
• Pitch: 0.050" (1.27mm)
• Voltage Rating: 250VAC
• Contact Material: Beryllium copper
• Contact Plating (Mating): Gold
• Contact Plating (Post): Tin
• Contact Finish Thickness (Mating): 10.0µin (0.25µm)
• Contact Length (Post): 0.075" (1.91mm)
• Termination: Through Hole
• Fastening Type: Push-Pull
• Temperature Range: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• Package: Bulk
• Features: Mounting Flange and Mounting Hardware
• Mated Stacking Heights: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, and 11.63mm
