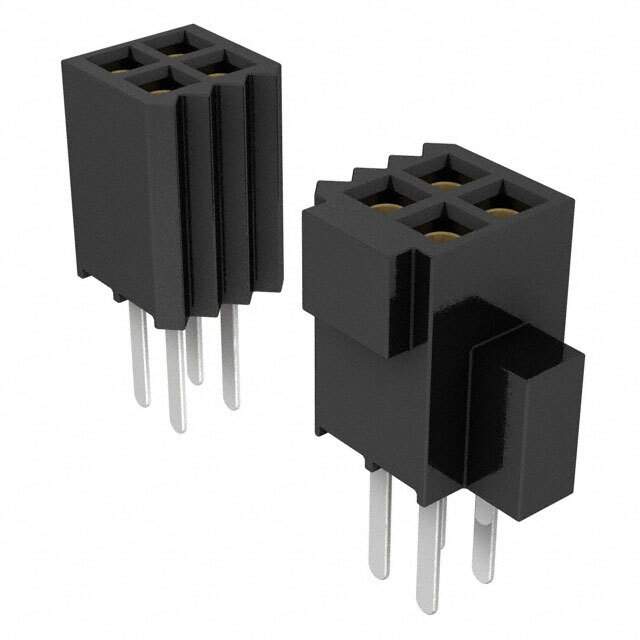

The Tiger Eye™ SFM-107-01-S-D is a high-quality rectangular connector that is designed to provide reliable performance in a wide range of applications.

• Connector Series: Tiger Eye™ SFM
• Number of Positions: 14
• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions Loaded: All positions
• Number of Rows: Two
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Material: Beryllium Copper
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, and 11.63mm
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: Black
• Mounting Type: Through Hole
• Row Spacing - Mating: 0.050" (1.27mm)
• Contact Length - Post: 0.120" (3.05mm)
• Insulation Height: 0.180" (4.57mm)
• Contact Shape: Square
• Temperature Range for Operating: -55°C ~ 125°C
• Manufacturer: Samtec Inc.
