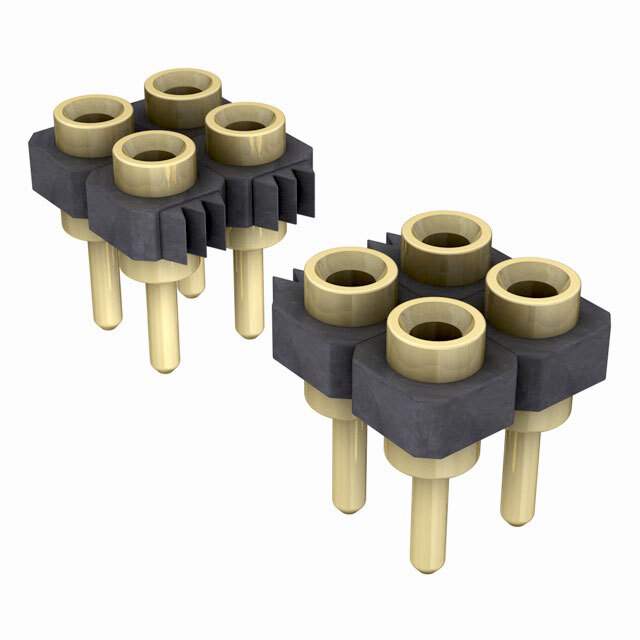

SDL-120-G-10 Real Image
Same model may have multiple batches, images only for reference.

SDL-120-G-10

Part No SDL-120-G-10
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT .100" 40POS DUAL GOLD
Datasheet
SDL-120-G-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Packaging Tube/Rail
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 40
Number of Positions Loaded All
Pitch - Mating 2.54mm
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Insulation Color Black
Insulation Height 0.122" (3.10mm)
Contact Length - Post 0.108" (2.75mm)
Temperature Range - Operating -55°C to 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Win Source Part Number 000682-SDL-120-G-10
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SDL-120-G-10 CAD Model

Description

The Samtec SDL-120-G-10 is a board-to-board connector with 40 positions. The supply and demand status is currently in balance.

  • Contact Type: Female Socket
  • Contact Shape: Circular
  • Pitch-Mating: 2.54mm
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold with a thickness of 10μin (0.25μm)
