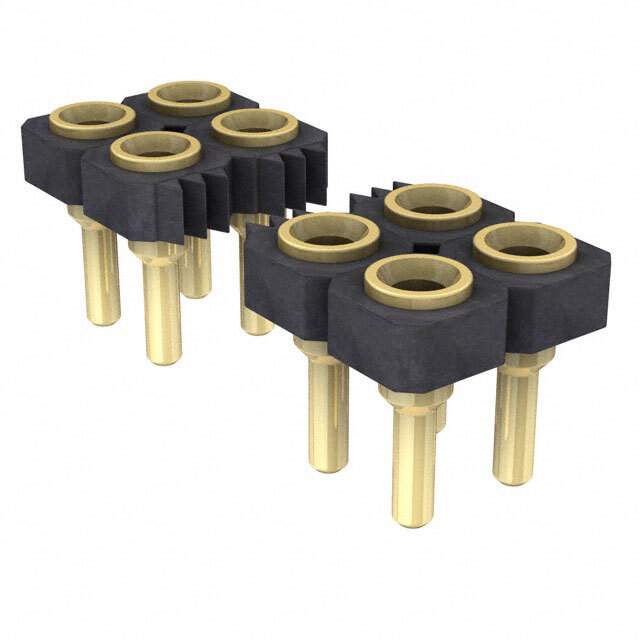

SDL-111-G-12

Name: SDL-111-G-12
Brand: Samtec Inc.
SKU: 1055594
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SDL-111-G-12
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 22POS 0.1 GOLD PCB / 22 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet	SDL-111-G-12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SDL
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	22
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Contact Length - Post	0.095" (2.41mm)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SDL-111
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1135-11
Standard Package	1
Win Source Part Number	1055594-SDL-111-G-12
Ultra Librarian 3D Model	Ultra Librarian SDL-111-G-12 CAD Model

Description

The SDL series female socket receptacle is a rectangular connector designed for board-to-board applications.

Pitch: 0.100 inches (2.54mm)
Positions: 22 loaded in two rows
Contact Material: Beryllium copper with a gold finish
Fastening Type: Push-pull
Mounting Type: Through-hole
Insulation Material: Liquid crystal polymer (LCP) with a black color
Temperature Range: -55°C to 125°C
RoHS Compliant: Yes
REACH Unaffected: Yes
Package: Tube
Standard Package: 1
Alternative Parts: SSW-111-01-G-D, BCS-111-L-D-PE, SLW-111-01-S-D, 76342-311LF, 87606-311LF, and 71991-311LFSDL111G12
