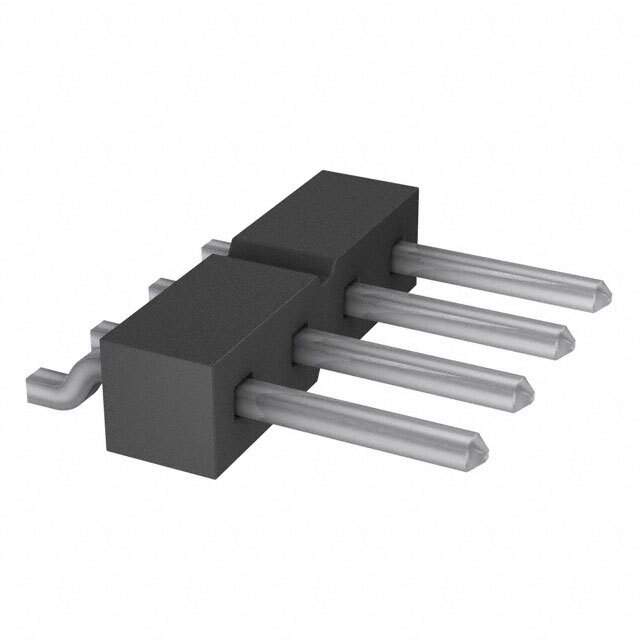

TSM-104-01-T-SH

Name: TSM-104-01-T-SH
Brand: Samtec Inc.
SKU: 1293117
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM-104-01-T-SH
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	TSM-104-01-T-SH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.120" (3.05mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-104
Other Names	SAM10795,TSM-104-01-T-SH
Standard Package	57
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293117-TSM-104-01-T-SH
Ultra Librarian 3D Model	Ultra Librarian TSM-104-01-T-SH CAD Model

Alternative Products

Description

The 1293117-TSM-104-01-T-SH is a rectangular connector header manufactured by Samtec Inc.

Series: TSM
Positions Loaded: 4
Pitch-Mating: 0.100”
Connector Type: Board-to-board or cable
Contact Type: Male pin
Termination: Solder
Temperature Range: -55°C to 105°C
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Material Flammability Rating: UL94 V-0
