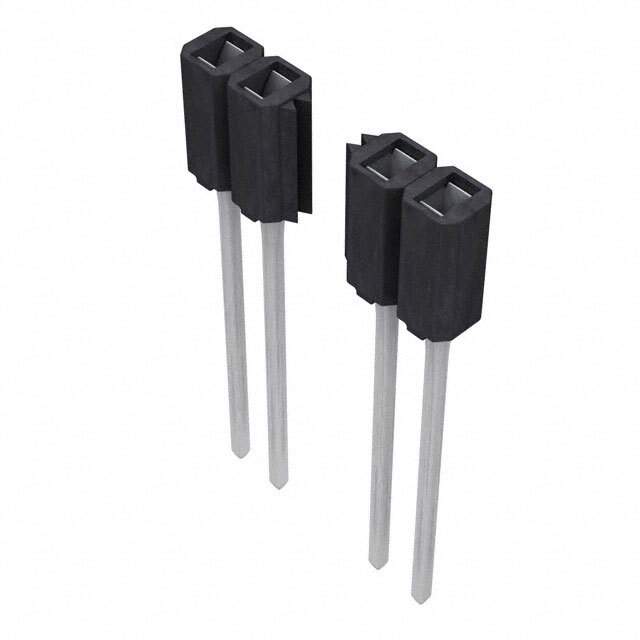

SSA-109-W-T

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSA-109-W-T
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSA-109-W-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSA
Package	Bulk
Connector Type	Receptacle, Breakaway
Contact Type	Female Socket
Style	Board to Board
Number of Positions	9
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Wire Wrap
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.230" (5.85mm)
Contact Length - Post	0.656" (16.66mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Voltage Rating	1000V
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Contact Material	Phosphor Bronze
Base Product Number	SSA-109
Other Names	SAM1125-09
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292045-SSA-109-W-T
Ultra Librarian 3D Model	Ultra Librarian SSA-109-W-T CAD Model

Description

The SSA-109-W-T is a rectangular connector receptacle from Samtec Inc.

Series: SSA
Positions: 9
Pitch: 0.100" (2.54mm)
Voltage Rating: 1000V
Connector Type: Breakaway Receptacle
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Insulation Material: Polyethylene Terephthalate (PET), Polyester
Insulation Height: 0.230" (5.85mm)
Contact Length of Post: 0.656" (16.66mm)
RoHS Compliant: Yes
ECCN: EAR99
