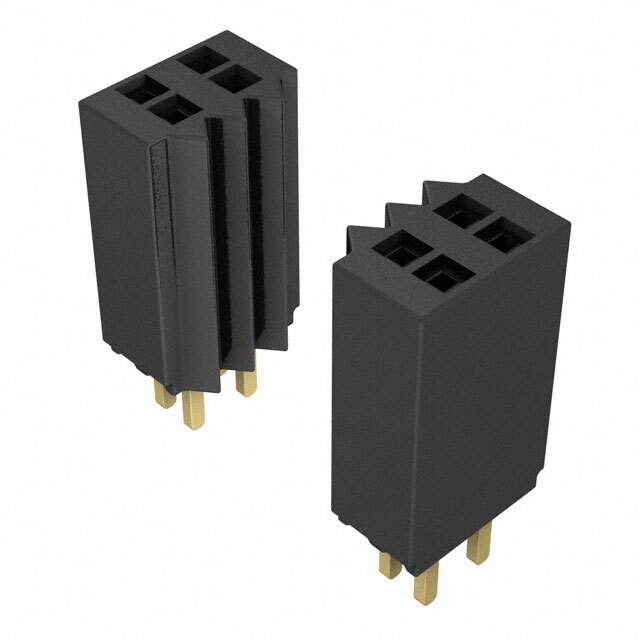

SMS-120-01-G-D Real Image
Same model may have multiple batches, images only for reference.

SMS-120-01-G-D

Part No SMS-120-01-G-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SMS-120-01-G-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SMS
Package Tube
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 40
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Gold
Current Rating (Amps) 5A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SMS-120
Other Names SMS-120-01-G-D,SAM9138
Standard Package 22
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292477-SMS-120-01-G-D
Ultra Librarian 3D Model Ultra Librarian SMS-120-01-G-D CAD Model

Description

The SMS series is a range of connectors that are designed to provide reliable and efficient connection solutions for rectangular connectors.

  • Connector: SMS-120-01-G-D
  • Type: Receptacle connector
  • Positions: 40
  • Rows: Two
  • Contacts: Forked
  • Current Rating: 5A per contact
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Application: Board-to-board
  • Pitch: 0.050" (1.27mm)
  • Fastening Type: Push-pull
  • Package: Tube
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
  • Standard Package: 22
  • Mounting: Through hole
