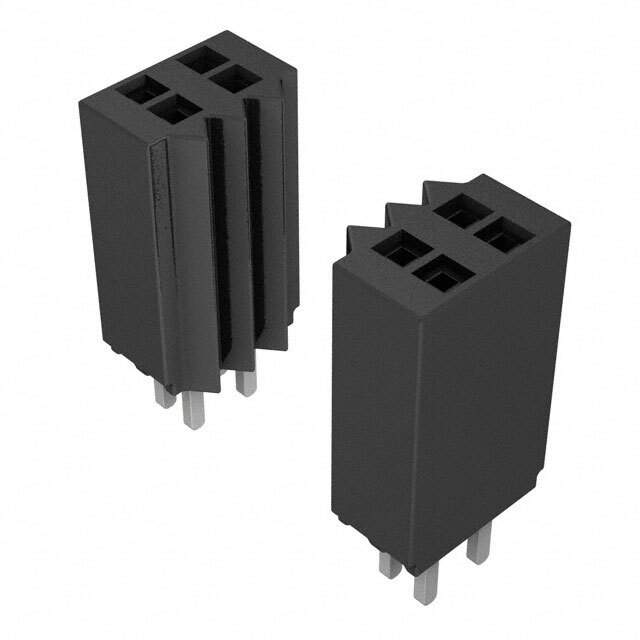

Same model may have multiple batches, images only for reference.

SMS-116-01-S-D

Name: SMS-116-01-S-D
Brand: Samtec Inc.
SKU: 1292480
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMS-116-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMS-116-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SMS
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	32
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	5A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SMS-116
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292480-SMS-116-01-S-D
Ultra Librarian 3D Model	Ultra Librarian SMS-116-01-S-D CAD Model

Alternative Products

Description

The Samtec Inc. SMS-116-01-S-D is a high-quality electronic connector that is ideal for use in various electronic devices.

Connector Type: Receptacle
Contact Type: Forked
Pitch: 0.050 inches
Fastening Type: Push-Pull
Mounting Type: Through-Hole
Current Rating: 5A per contact
Temperature Range: -55°C to 125°C
