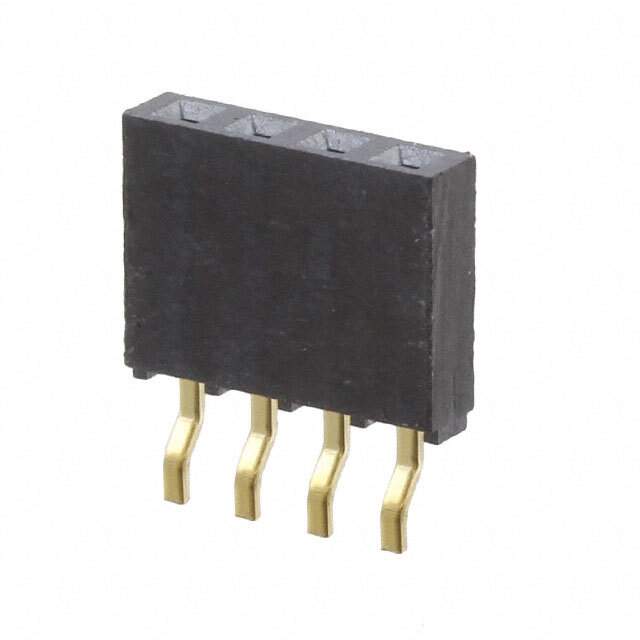

The SMH series receptacle connector is a rectangular connector with forked contacts and a push-pull fastening system.

• Series: SMH
• Connector Type: Receptacle
• Contact Type: Forked
• Fastening System: Push-pull
• Application: Board-to-board Connections
• Positions Loaded: 4
• Rows: 1
• Termination: Soldering
• Insulation Material: Black liquid crystal polymer (LCP)
• Flammability Rating: UL94 V-0
• Contact Material: Phosphor bronze
• Contact Finish (Mating): Gold with a thickness of 20.0μin (0.51μm)
• Contact Finish (Post): Gold with a flash thickness
• Pitch: 0.100" (2.54mm)
• Insulation Height: 0.095" (2.41mm)
• Contact Shape: Square
• Operating Temperature: -55°C to 125°C
• Package: Bulk
• Standard Package: 1
