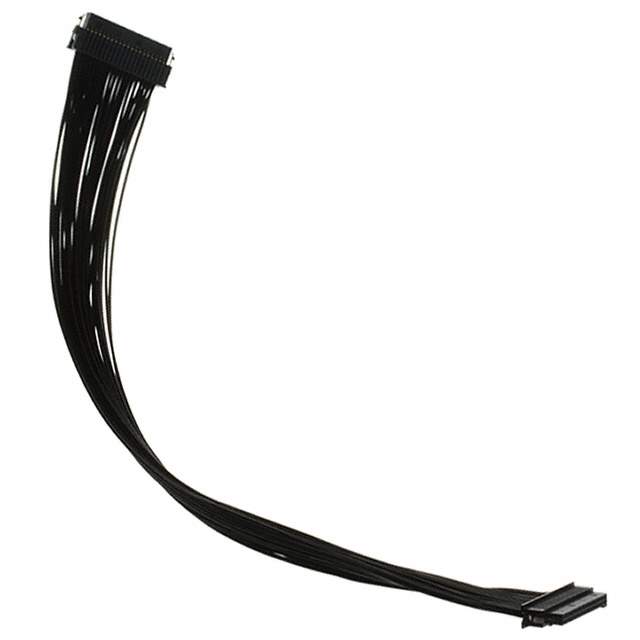

SFSD-20-28-H-10.00-DR-NUS Real Image
Same model may have multiple batches, images only for reference.

SFSD-20-28-H-10.00-DR-NUS

Part No SFSD-20-28-H-10.00-DR-NUS
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Datasheet
SFSD-20-28-H-10.00-DR-NUS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ SFSD
Package Bulk
Connector Type Socket to Socket
Number of Positions 40
Number of Rows 2
Pitch - Connector 0.050" (1.27mm)
Length 0.833' (254.00mm, 10.00")
Features Latch Lock, Polarizing Key
Color Black, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number SFSD-20
Other Names SAM8694
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1310016-SFSD-20-28-H-10.00-DR-NUS
Ultra Librarian 3D Model Ultra Librarian SFSD-20-28-H-10.00-DR-NUS CAD Model

Description

The Tiger Eye™ SFSD series cable assembly is a socket to socket connector type that is polarized with a polarizing key.

  • Design: 2-row design with 40 positions
  • Colors: black individual colors
  • Contact Finish: gold with a finish thickness of 30.0μin (0.76μm)
  • Cable Termination: crimped
  • Pitch Connector: 0.050" (1.27mm)
  • Shielding: unshielded
  • Length: 0.833' (254.00mm, 10.00")
  • Package: standard bulk package
  • Usage: unspecified
  • ECCN: EAR99
  • HTSUS: 8544.42.9090
  • Manufacturer: Samtec Inc.
