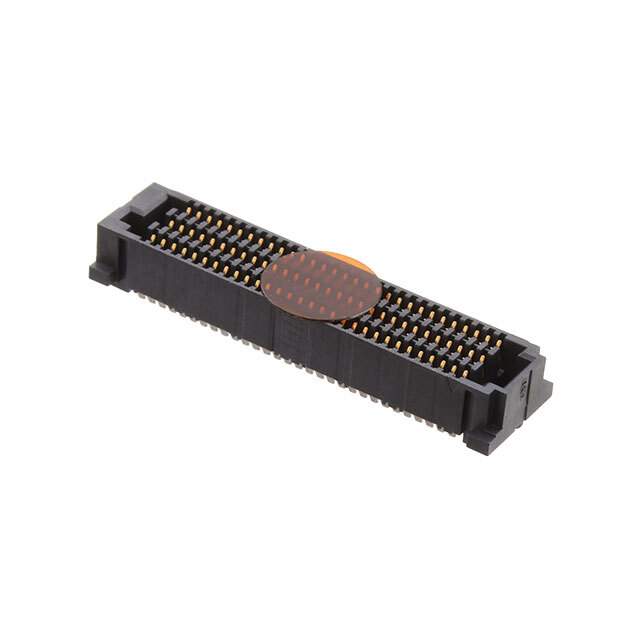

SEAF8-30-05.0-S-06-2

Name: SEAF8-30-05.0-S-06-2
Brand: Samtec Inc.
SKU: 1293557
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF8-30-05.0-S-06-2
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF8-30-05.0-S-06-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Product Status	Obsolete
Connector Type	High Density Array, Female
Number of Positions	180
Pitch	0.031" (0.80mm)
Number of Rows	6
Mounting	SMD (SMT)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 10mm
Height Above Board	0.180" (4.57mm)
Base Product Number	SEAF8-30
Standard Package	125
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293557-SEAF8-30-05.0-S-06-2
Ultra Librarian 3D Model	Ultra Librarian SEAF8-30-05.0-S-06-2 CAD Model

Alternative Products

Description

The SEAF8-30-05.0-S-06-2 is a rectangular connector array with a high density of female contacts.

Application: Mezzanine (board to board) applications
Positions: 180
Connector Type: High density array, female connector
Package: Tape & reel (TR)
Termination: Solder
Pitch: 0.031" (0.80mm)
Height Above Board: 0.180" (4.57mm)
Contact Finish: Gold
