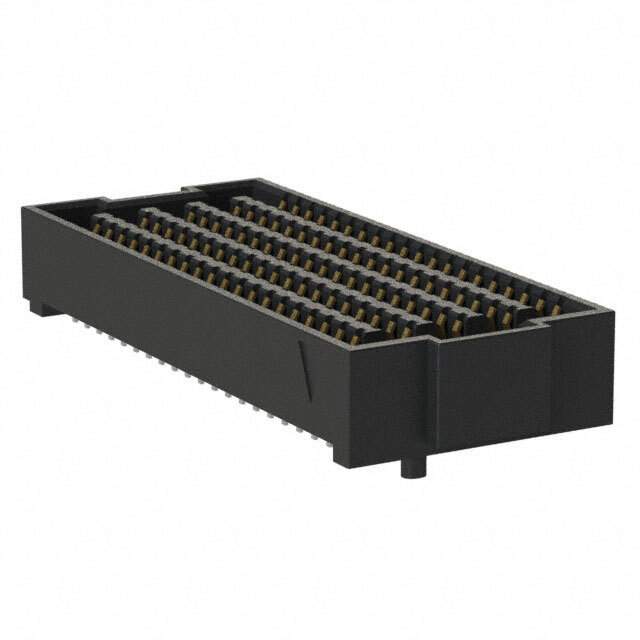

SEAF-20-05.0-S-10-2-A-K-TR

Name: SEAF-20-05.0-S-10-2-A-K-TR
Brand: Samtec Inc.
SKU: 1293882
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SEAF-20-05.0-S-10-2-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-05.0-S-10-2-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	200
Pitch	0.050" (1.27mm)
Number of Rows	10
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-20
Other Names	SAM8001TR,SEAF-20-05.0-S-10-2-A-K-TR,SEAF-20-05.0-S-10-2-A-K-TRINACTIVE,SEAF20050S102AKTR,SEAF-20-05.0-S-10-2-A-K-FR,SAM8001DKR,SEAF-20-05.0-S-10-2-A5-K-TR,SEAF-20-05.0-S-10-2-A5-K-TR,SAM8001CT
Standard Package	300
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293882-SEAF-20-05.0-S-10-2-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-05.0-S-10-2-A-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series is a high-density rectangular connector that is ideal for mezzanine (board-to-board) applications.

Connector Type: Female
Positions: 200
Rows: 10
Pitch: 0.050" (1.27mm)
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Board Guide: Yes
Pick and Place: Yes
Packaging: Tape & Reel
Height Above Board: 0.199" (5.05mm)
Mounting: SMD (SMT)
Current Rating: 71 pct.
Manufacturer: Samtec Inc.
