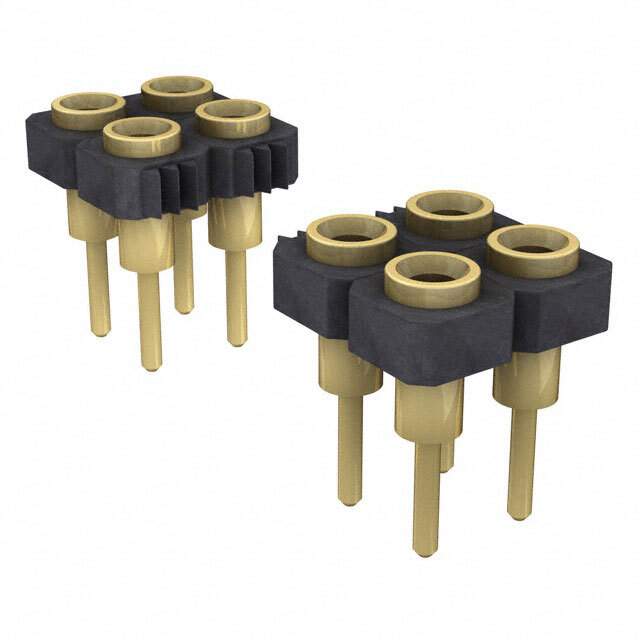

The SDL-122-G-11 is a terminal strip produced by Samtec Inc., specifically designed for creating reliable and space-efficient board-to-board connections. Part of the SDL series, it is engineered to offer a durable solution for a wide range of electronic applications where compact design and consistent connectivity are essential.

Applications

• Compact Electronic Devices: Often found in small form factor computers, portable audio players, and other miniaturized electronics.
• Sensor Modules: Used in connecting sensors to main boards in environmental monitoring, industrial automation, and IoT applications.
• Medical Instruments: Employed in portable medical devices and diagnostic equipment where space is a premium.
• Control Systems: Incorporated into control panels and embedded systems where connections need to be reliable yet compact.
• LED Displays: Utilized in connecting LED panels and drivers in various display applications.

Features

• Number of Rows: Single row configuration for maximum space efficiency.
• Number of Positions: 22 positions, allowing for a high density of connections within a small footprint.
• Pitch: Standard 0.100" (2.54mm) pitch, ensuring compatibility with standard PCBs and components.
• Termination Style: Through-hole termination for a strong and secure mechanical connection to the PCB.
• Insulator Material: Made from high-temperature thermoplastic, which provides excellent insulation and can withstand soldering temperatures.
• Contact Material: Contacts are typically made from phosphor bronze or beryllium copper, offering good conductivity and durability.
• Contact Plating: Gold or tin plating on the contact area to ensure reliable electrical contact and prevent corrosion.
• Profile: Low-profile design to minimize overall height and maximize space utilization.

Benefits

• Space-Saving Design: Low-profile and compact footprint make it ideal for use in miniature electronic devices.
• Reliable Connection: Ensures a stable and consistent electrical connection, minimizing signal loss and ensuring optimal performance.
• Durable Construction: High-quality materials and construction ensure long-term reliability and resistance to environmental factors.
• Easy to Install: Through-hole termination makes it easy to solder and integrate into existing PCB designs.
• Versatile Application: Suitable for a wide range of applications due to its compact size, reliable performance, and robust design.

Additional Details

The SDL-122-G-11 terminal strip is designed to be easy to use and provide long-lasting performance. Its through-hole termination method ensures a robust mechanical connection to the PCB. The high-temperature thermoplastic insulator allows for reflow soldering without the risk of deformation. The gold or tin-plated contacts ensure reliable electrical performance, even in demanding environments. This terminal strip is an excellent choice for any application requiring a compact, reliable, and space-efficient board-to-board connection.
