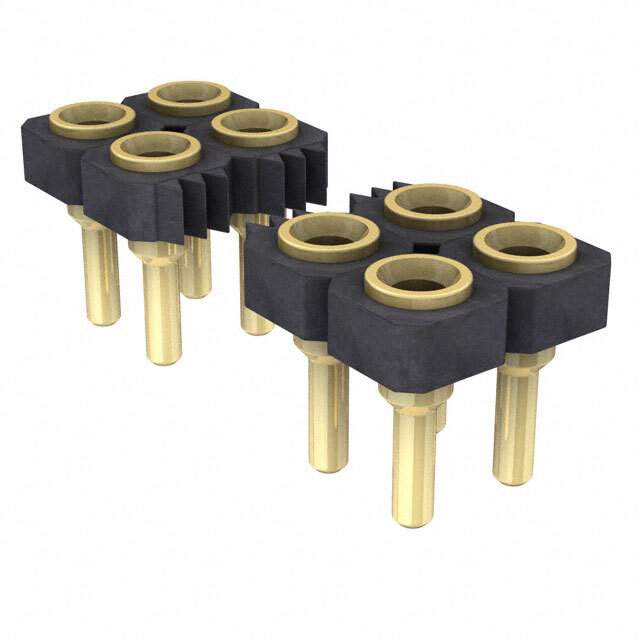

SDL-108-G-12

Name: SDL-108-G-12
Brand: Samtec Inc.
SKU: 1292873
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SDL-108-G-12
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SDL-108-G-12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SDL
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Contact Length - Post	0.095" (2.41mm)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SDL-108
Other Names	SAM1135-08
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292873-SDL-108-G-12
Ultra Librarian 3D Model	Ultra Librarian SDL-108-G-12 CAD Model

Alternative Products

Description

The SDL series from Samtec Inc. is a rectangular connector that is perfect for use in headers, receptacles, and female sockets.

Positions: 16
Contact Type: Female socket
Positions Loaded: All
Rows: 2
Termination: Solder
Fastening Type: Push-pull
Contact Material: Beryllium copper
Insulation Material: Liquid crystal polymer (LCP)
Style: Board-to-board
Pitch-Mating: 0.100 inches (2.54mm)
Contact Finish-Mating: Gold
Contact Length-Post: 0.095 inches (2.41mm)
Insulation Height: 0.095 inches (2.41mm)
Temperature Range: -55°C to 125°C
