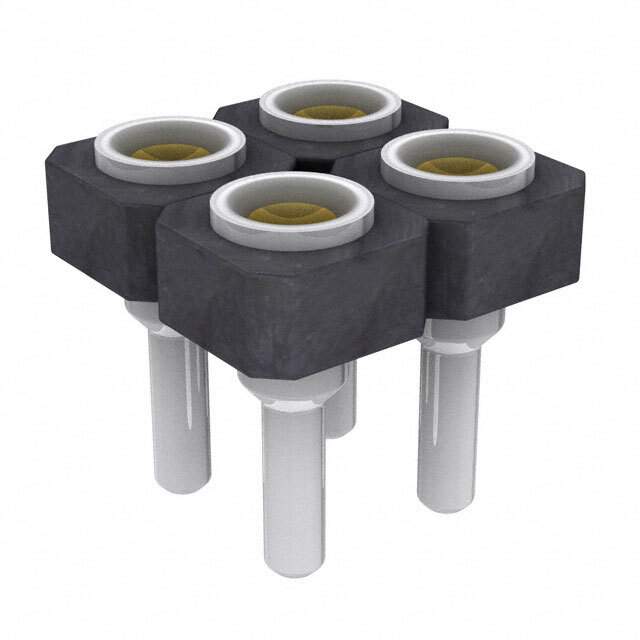

SDL-102-T-12 Real Image
Same model may have multiple batches, images only for reference.

SDL-102-T-12

Part No SDL-102-T-12
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-102-T-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.095" (2.41mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-102
Other Names SAM1138-02
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293017-SDL-102-T-12
Ultra Librarian 3D Model Ultra Librarian SDL-102-T-12 CAD Model

Description

The SDL series female socket connector is a high-quality rectangular connector that is designed for use in headers, receptacles, and female sockets.

  • Positions: 4
  • Pitch: 0.100" (2.54mm)
  • Rows: Two
  • Row Spacing: 0.100" (2.54mm)
  • Termination: Solder
  • Contact Finish (Mating): Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Beryllium Copper
  • Contact Type: Female Socket
  • Contact Length (Post): 0.095" (2.41mm)
  • Insulation Height: 0.095" (2.41mm)
  • Contact Shape: Circular
  • Application: Board-to-Board
  • Temperature Range: -55°C ~ 125°C
  • Base Product Number: SDL-102
  • Manufacturer: Samtec Inc.
