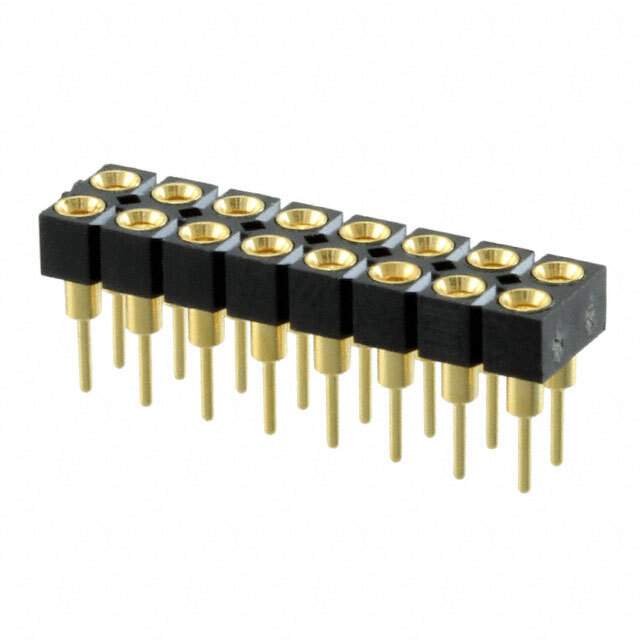

Same model may have multiple batches, images only for reference.

SD-108-G-2

Name: SD-108-G-2
Brand: Samtec Inc.
SKU: 1293046
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SD-108-G-2
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SD-108-G-2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SD
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.350" (8.89mm)
Contact Length - Post	0.125" (3.18mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Contact Finish Thickness - Post	10.0µin (0.25µm)
Base Product Number	SD-108
Other Names	SD-108-G-2,SAM11665
Standard Package	27
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293046-SD-108-G-2
Ultra Librarian 3D Model	Ultra Librarian SD-108-G-2 CAD Model

Description

The SD series of rectangular connectors from Samtec Inc. offers a reliable and robust solution for board to board connections.

Connector: SD-108-G-2 receptacle
Contacts: 16 circular
Rows: Both
Fastening Type: Push-Pull
Contact Material: Beryllium Copper
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Pitch: 0.100 inches (2.54mm)
Contact Finish - Mating and Post: Gold
Temperature Range: -55°C to 125°C
