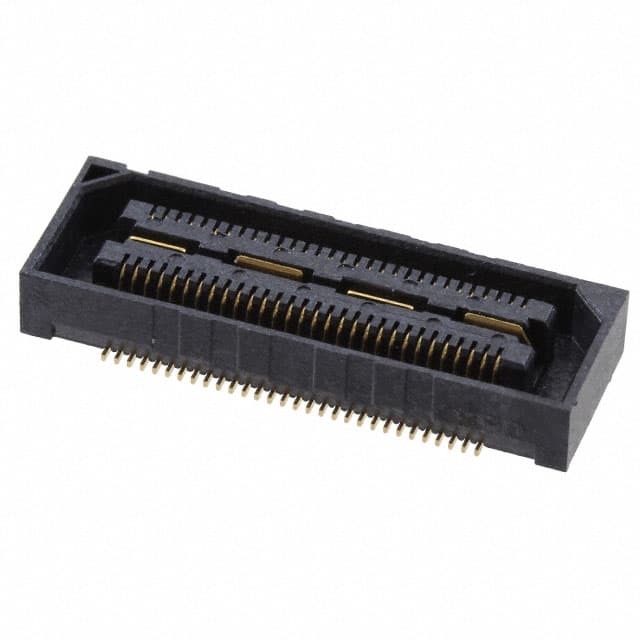

QSH-030-01-H-D-A

Name: QSH-030-01-H-D-A
Brand: Samtec Inc.
SKU: 1314933
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	QSH-030-01-H-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	QSH-030-01-H-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Q Strip® QSH
Package	Tray
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	60
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide, Ground Bus (Plane)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board	0.128" (3.25mm)
Base Product Number	QSH-030
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1314933-QSH-030-01-H-D-A
Ultra Librarian 3D Model	Ultra Librarian QSH-030-01-H-D-A CAD Model

Alternative Products

Description

The Q Strip® QSH series is a rectangular connector array that is designed for board-to-board interconnects.

Series: Q Strip® QSH
Connector Type: Receptacle
Contact Type: Center Strip
Pitch: 0.020" (0.50mm)
Number of Positions: 60
Number of Rows: 2
Height Above Board: 0.128" (3.25mm)
Features: Board Guide, Ground Bus (Plane)
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Mated Stacking Heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Mounting Type: Surface Mount (SMT)
