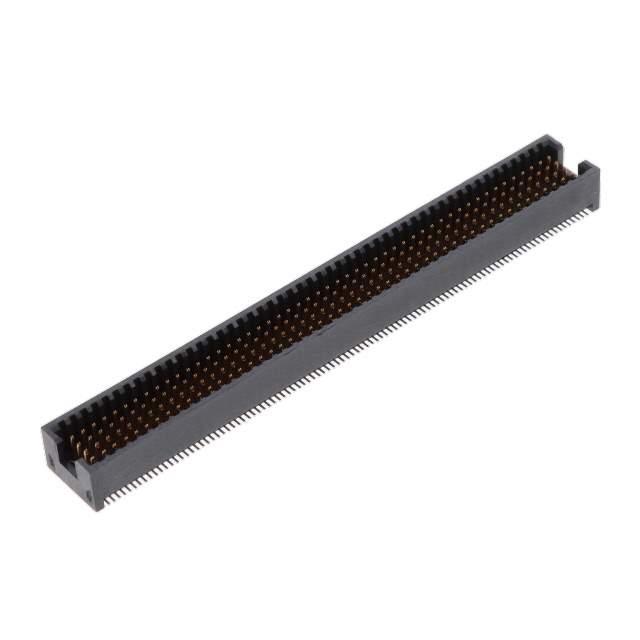

Same model may have multiple batches, images only for reference.

MOLC-150-02-S-Q

Name: MOLC-150-02-S-Q
Brand: Samtec Inc.
SKU: 1341244
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MOLC-150-02-S-Q
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 200POS 1.27MM / Connector Header Surface Mount 200 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FOURRAY™ MOLC
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	200
Number of Rows	4
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.130" (3.30mm)
Insulation Height	0.215" (5.45mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.6A per Contact
Base Product Number	MOLC-150
Standard Package	8
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1341244-MOLC-150-02-S-Q
Ultra Librarian 3D Model	Ultra Librarian MOLC-150-02-S-Q CAD Model

Alternative Products

Description

The MOLC-150-02-S-Q is a FOURRAY™ MOLC series header connector with 200 positions.

Pitch - Mating: 0.050" (1.27mm)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Shrouding: Shrouded 4-Wall
Contact Shape: Square
Mounting Type: Surface Mount
Package: Tube
Current Rating: 2.6A per contact
Operating Temperature: -55°C to 125°C
Connector Type: Header
Contact Type: Male Pin
Termination: Solder
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.215" (5.45mm)
