AD7606BSTZ-RL: High-Precision Data Acquisition System by Analog Devices Inc.

The AD7606BSTZ-RL from Analog Devices Inc. stands out as an exceptionally precise 8-channel data acquisition system, designed to cater to applications that demand high accuracy and wide dynamic range. This integrated circuit features a 16-bit analog-to-digital converter (ADC) with simultaneous sampling, making it an ideal solution for advanced industrial, medical, and automotive systems where multiple sensor inputs require precise digitization in real-time.

Key Features:

• Simultaneous Sampling: The AD7606BSTZ-RL ensures that all 8 channels are sampled at the same time, which is critical for accurate multi-channel measurements.
• High Resolution: With a 16-bit resolution, this device provides a high level of detail in the digital representation of the analog signals.
• Wide Input Range: The device supports a flexible input voltage range, accommodating various types of sensors and signal sources.
• Overvoltage Protection: The inputs are protected against overvoltage conditions, enhancing the robustness and reliability of the system in harsh environments.
• Integrated Features: It includes an on-chip reference and reference buffer, input clamp protection, overvoltage protection, and a digital filter to reduce noise.

Applications:

The versatility of the AD7606BSTZ-RL makes it suitable for a wide array of applications, including:

• Industrial control systems
• Medical instrumentation
• Automotive diagnostics
• Multi-axis positioning systems
• Power line monitoring

Package and Reliability:

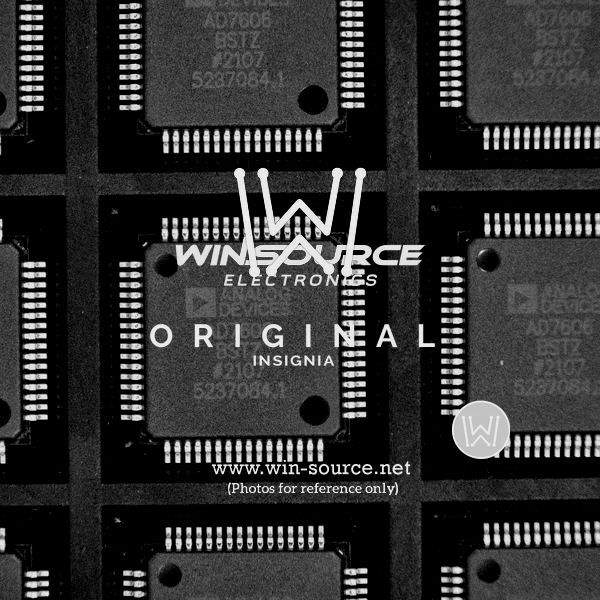

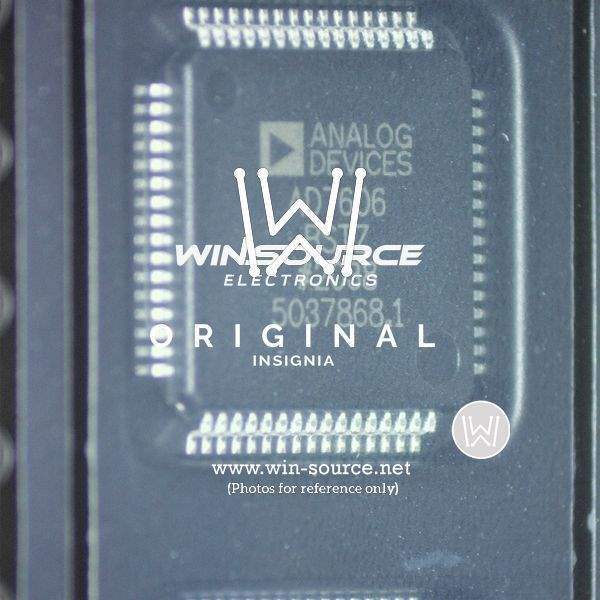

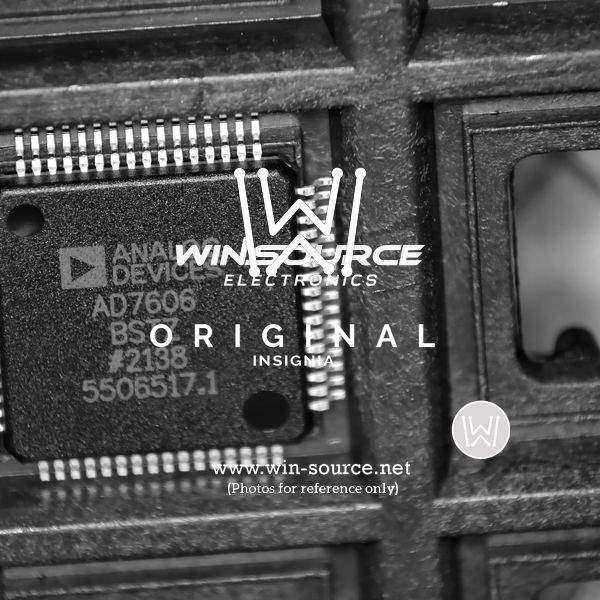

Encased in an LQFP-64 package, the AD7606BSTZ-RL is designed for surface mount technology, allowing for a compact PCB design. The part is available in a reel, denoted by the 'RL' suffix, facilitating efficient assembly processes for high-volume production. Analog Devices Inc. is known for their commitment to quality, and this product is no exception, delivering reliable performance for critical system applications.

In conclusion, the AD7606BSTZ-RL is a testament to Analog Devices Inc.'s excellence in precision data acquisition technology. It offers engineers a high-performance solution that combines accuracy, speed, and robustness, making it a top choice for sophisticated multi-channel measurement tasks.
